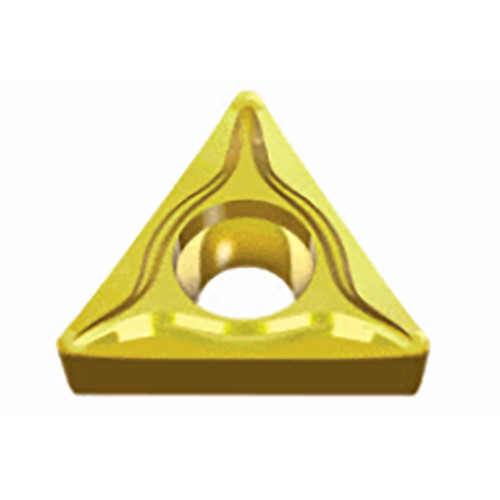

Taegutec TCMT 16T304 FG CT3000

Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000
Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.4 mm

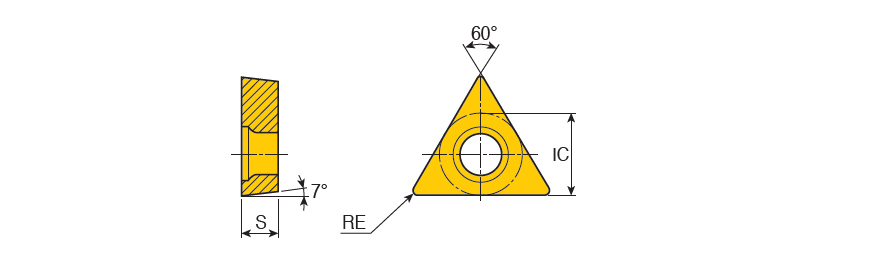

Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.07 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Cermet
Body Material: Carbide
Coating: Cermet
Unit: M
