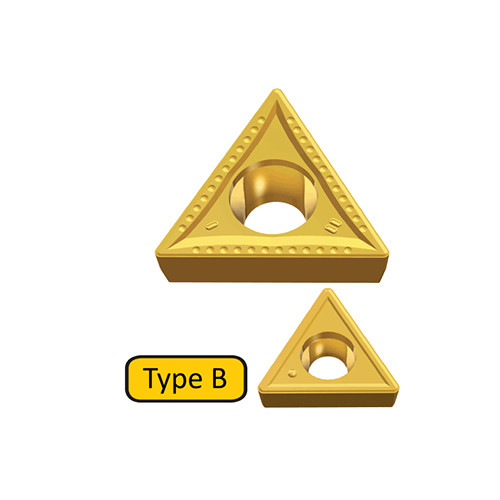

Taegutec TCMT 16T304 MT TT7015

Applicable Material:, Cast Iron, Grade: TT7015
Application:, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Tools for Swiss Machines, Min D.O.C.: 0.8 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.1 mm/rev
Insert Thickness (S): 3.97 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
