Taegutec TDB50X 59-W50-L200

Product Code: 6122161

$1,937.32$1,761.20 Ex. GST

Product Code: 6122161 SKU 6122161 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

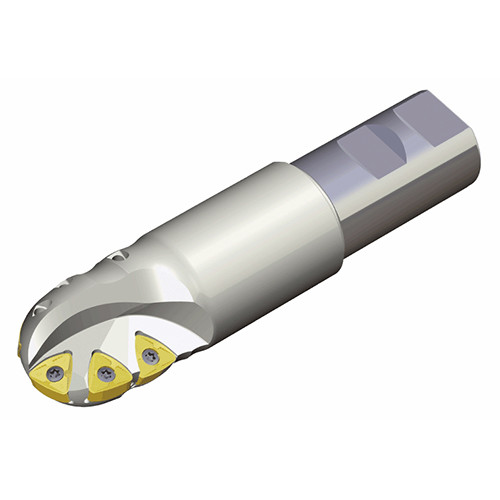

Weldon shank type holders with 6RBE 50-M inserts for rough ball tools

Weight	2.6500 kg
Dimensions
barcode

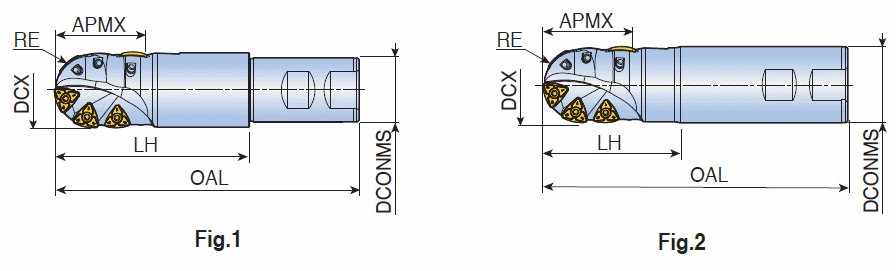

Additional Information	Cutting Diameter (DC/DCX): 50 mm Connection Diameter Machine Side (DCONMS): 50 mm Cutting Diameter (DC): 50 mm Master Insert Identification (MIID): 6RBE 50-M Cutting Item Count (CICT): 6 Head Length (LH): 90 mm Depth of Cut Maximum (APMX): 59 mm Measurement Type: Metric Overall Length (OAL): 200 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Helical Interpolation, Profiling, Rampdown
