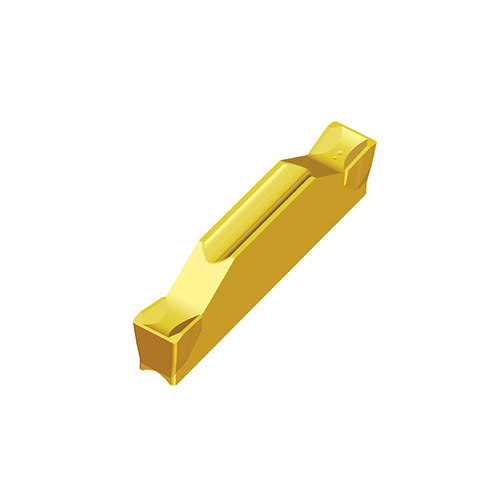

Taegutec TDC 3 TT7220

Product Code: 6000203

$38.18$34.71 Ex. GST

Product Code: 6000203 SKU 6000203 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

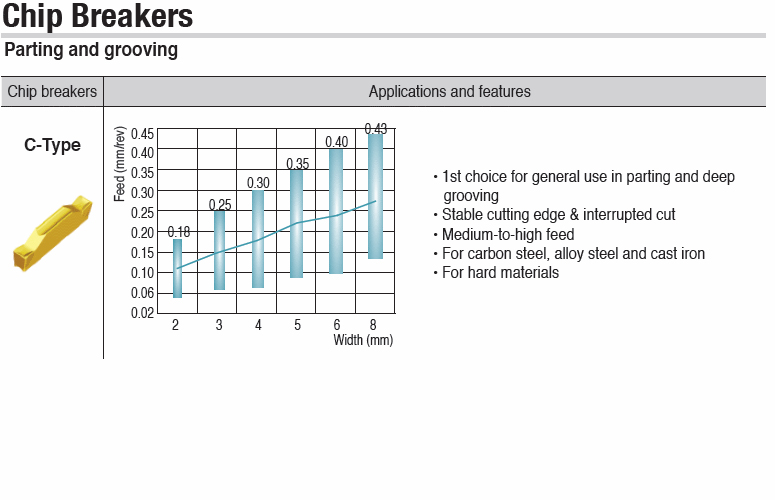

Double-ended inserts with C-Type chip breaker for Parting & Grooving of hard materials & tough applications in medium-to-high feed of steel, alloy steel & stainless steel

Additional information

Weight	0.0040 kg
Dimensions
barcode

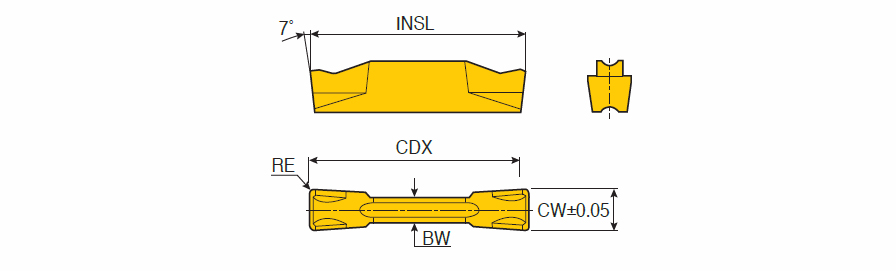

Additional Information	Cutting Width (CW): 3 mm Application:, Ext. Grooving, Face Grooving, Inserts, Int. Grooving, Parting, Corner Radius (RE): 0.2 mm Applicable Material:, Steel, Stainless Steel, Overall Length (OAL): 20 mm Height: 4.7 mm Cutting Depth Maximum (CDX): 19 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M Grade: TT7220
