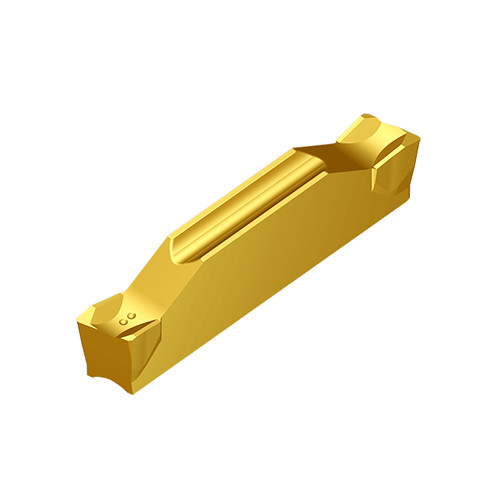

Taegutec TDC 4-4R TT9080

Product Code: 6110861

$42.22$38.38 Ex. GST

Product Code: 6110861 SKU 6110861 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

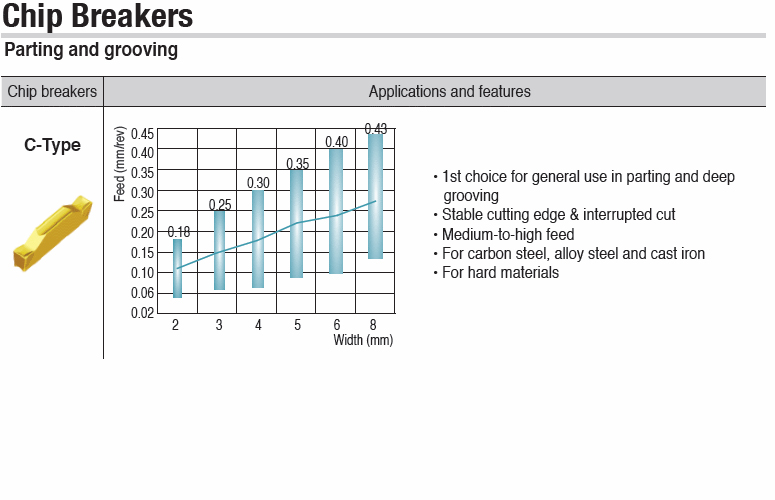

Double ended inserts with lead angle & C-Type chip breaker for Parting of hard materials & tough applications in medium to high feed of steel, alloy steel and stainless steel

Additional information

Weight	0.0051 kg
Dimensions
barcode

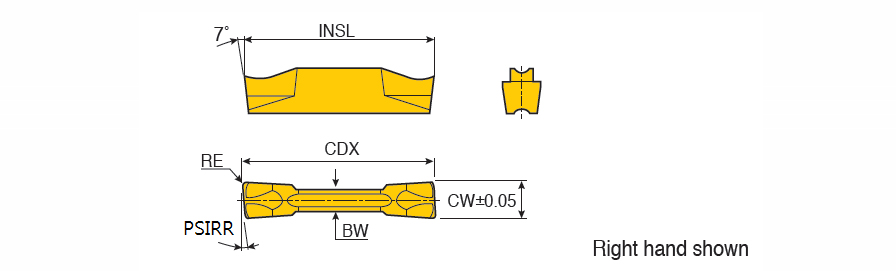

Additional Information	Cutting Width (CW): 4 mm Application:, Inserts, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 20 mm Height: 4.7 mm Cutting Depth Maximum (CDX): 19 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M Grade: TT9080
