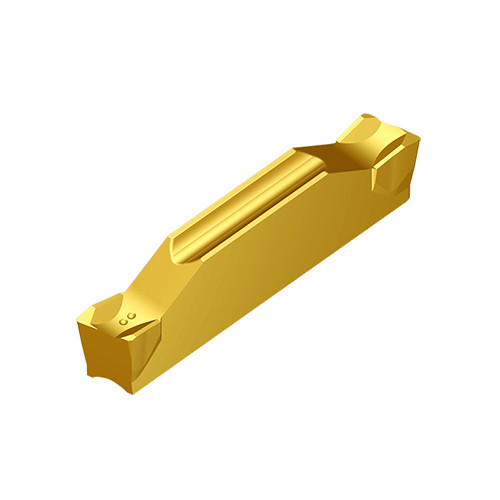

Taegutec TDC 5-4R TT8020

Product Code: 6000213

$45.99$41.81 Ex. GST

Product Code: 6000213 SKU 6000213 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

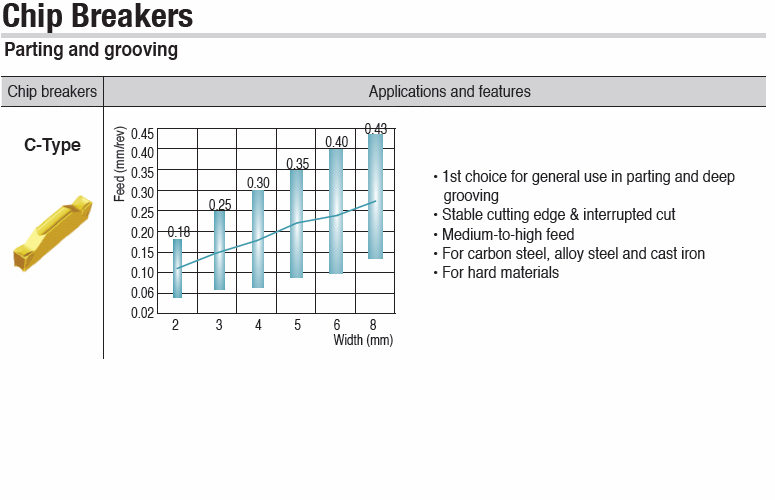

Double ended inserts with lead angle & C-Type chip breaker for Parting of hard materials & tough applications in medium to high feed of steel, alloy steel and stainless steel

Additional information

Weight	0.0089 kg
Dimensions
barcode

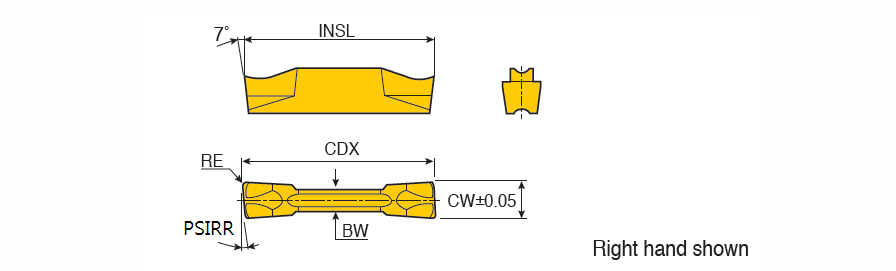

Additional Information	Cutting Width (CW): 5 mm Application:, Inserts, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 25 mm Height: 5.2 mm Cutting Depth Maximum (CDX): 24 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M Grade: TT8020
