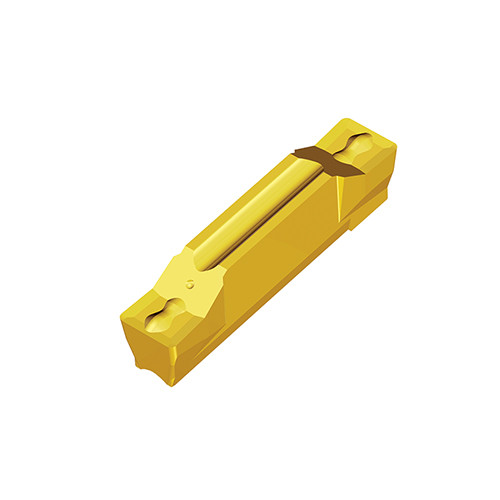

Precision double-ended inserts for face grooving and turning
Additional information
Weight
0.0039 kg
barcode
Additional Information

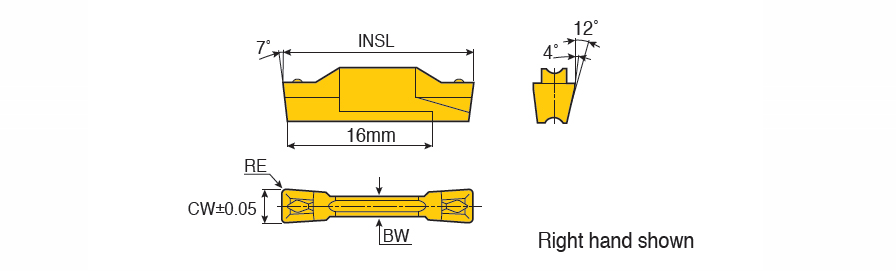

Cutting Width (CW): 3 mm
Min D.O.C.: 0.5 mm
Insert Length (INSL): 20 mm
Min. Grooving Feed (fg(min)): 0.07 mm
Corner Radius (RE): 0.4 mm
Max. Grooving Feed (fg(max)): 0.15 mm
Insert Thickness Total (S1): 4.7 mm
Min. Turning Feed (ft(min)): 0.15 mm/rev
Cutting Edge Material: Carbide
Max. Turning Feed (ft(max)): 0.22 mm/rev
Applicable Material:, Steel, Stainless Steel, Measurement Type: Metric
Grade: TT7220
Coating: TiCN
Application:, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Inserts, Int. Face Grooving, Int. Face Grooving & Turning, Body Material: Carbide
Depth of Cut Maximum (APMX): 0.2 mm
Unit: M
