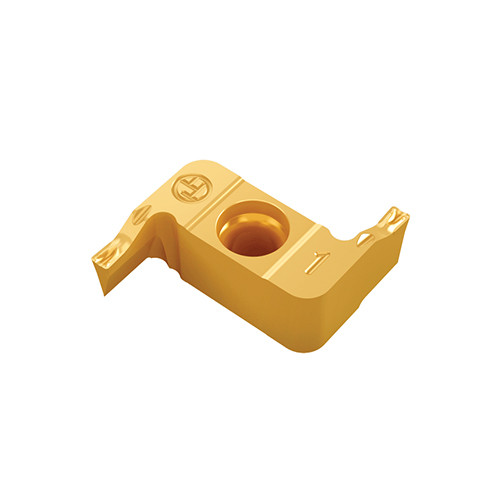

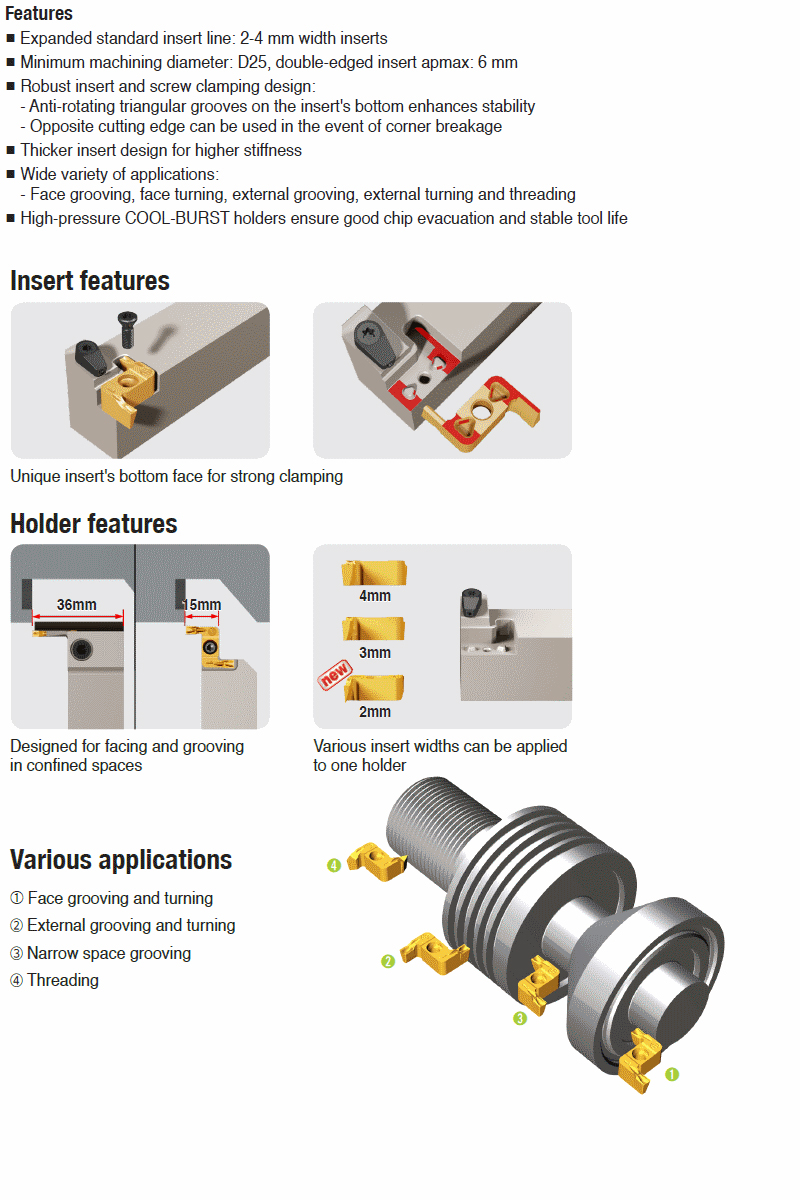

Screw type double-ended inserts with rigid & anti-rotating design for face grooving, turning & multiple applications
Additional information
Weight
0.0203 kg
barcode
Additional Information

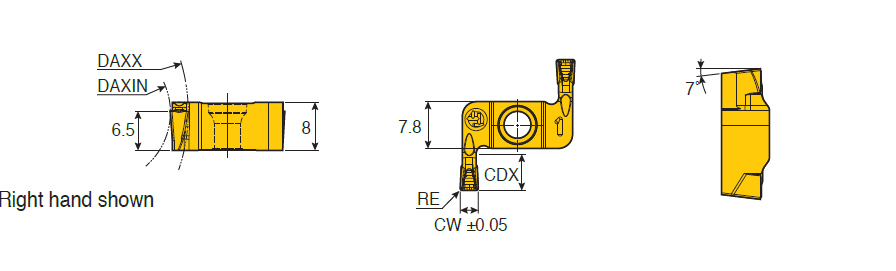

Cutting Width (CW): 4 mm
Axial Groove Outside Diameter Maximum (DAXX): –
Corner Radius (RE): 0.4 mm
Min. Grooving Feed (fg(min)): 0.09 mm
Cutting Depth Maximum (CDX): 6 mm
Max. Grooving Feed (fg(max)): 0.25 mm
Cutting Edge Material: Carbide
Min. Turning Feed (ft(min)): 0.15 mm/rev
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Max. Turning Feed (ft(max)): 0.24 mm/rev
Grade: TT9080
Measurement Type: Metric
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Face Grooving Along Shaft, Inserts, Coating: TiAlN+TiN
Depth of Cut Maximum (APMX): 2.4 mm
Body Material: Carbide
Min D.O.C.: 0.5 mm
Unit: M
