Taegutec TDIP 2.50E-0.20 TT9080

Product Code: 6402257

$52.54$47.76 Ex. GST

Product Code: 6402257 SKU 6402257 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

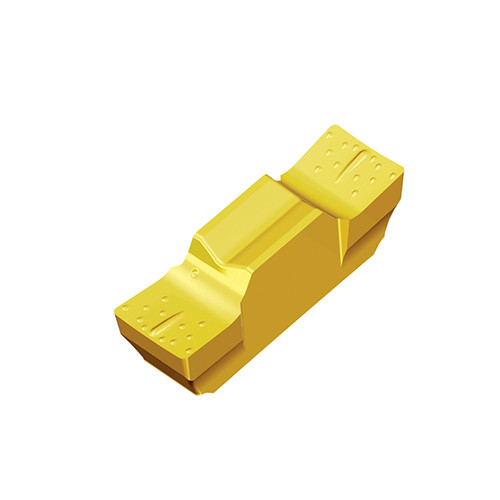

Taegutec TDIP 2.50E-0.20 TT9080

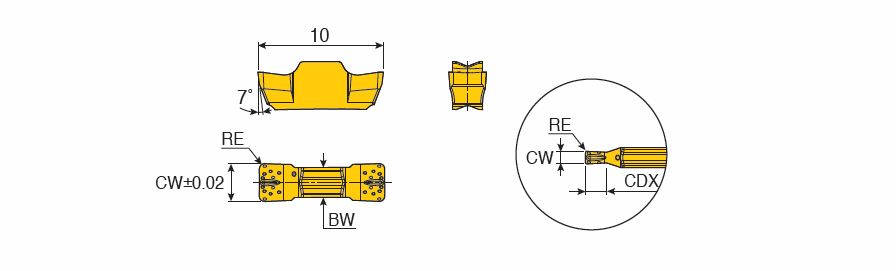

Taegutec TDIP 2.50E-0.20 TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision ground double-ended inserts for Internal & external Turning and grooving

Additional information

Weight	0.0023 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Depth of Cut Maximum (APMX): 1.1 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Face Grooving, Inserts, Int. Groove & Turn, Int. Grooving, Int. Profiling, Min. Turning Feed (ft(min)): 0.07 mm/rev Corner Radius (RE): 0.2 mm Max. Turning Feed (ft(max)): 0.09 mm/rev Cutting Edge Material: Carbide Measurement Type: Metric Coating: TiAlN+TiN Body Material: Carbide Grade: TT9080 Unit: M Min D.O.C.: 0.2 mm

Brand

Taegutec
