Taegutec TDIT 3.00E-0.40 TT7220

Product Code: 6400313

$55.21$50.19 Ex. GST

Product Code: 6400313 SKU 6400313 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

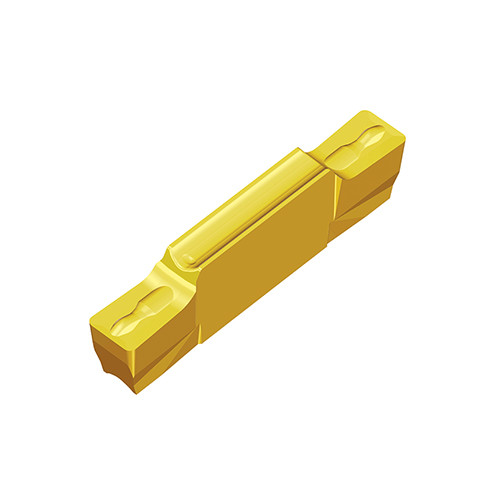

Taegutec TDIT 3.00E-0.40 TT7220

Taegutec TDIT 3.00E-0.40 TT7220 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision double-ended inserts for internal turning and grooving

Additional information

Weight	0.0040 kg
barcode

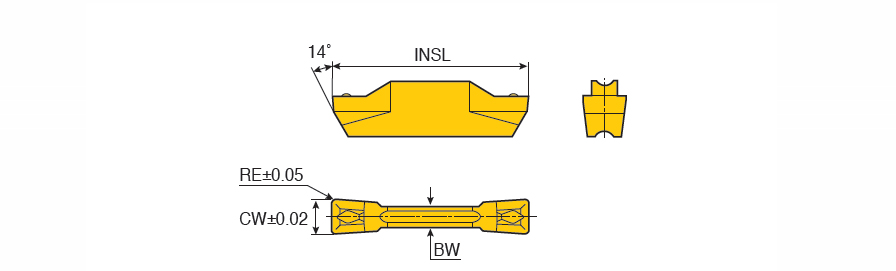

Additional Information	Cutting Width (CW): 3 mm Application:, Inserts, Int. Groove & Turn, Int. Grooving, Corner Radius (RE): 0.4 mm Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 4.7 mm Insert Seat Size Code (SSC): 3 Insert Length (INSL): 20 mm Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT7220 Unit: M Cutting Edge Material: Carbide

Brand

Taegutec
