Taegutec TDIT 3.00E-1.50 TT7220

Product Code: 6400364

$57.05$51.86 Ex. GST

Product Code: 6400364 SKU 6400364 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

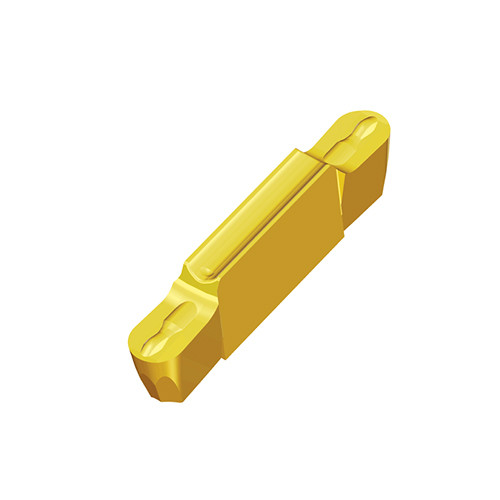

Precision double-ended Inserts for Internal Turning, Grooving, Profiling and Undercutting

Weight	0.0037 kg
barcode

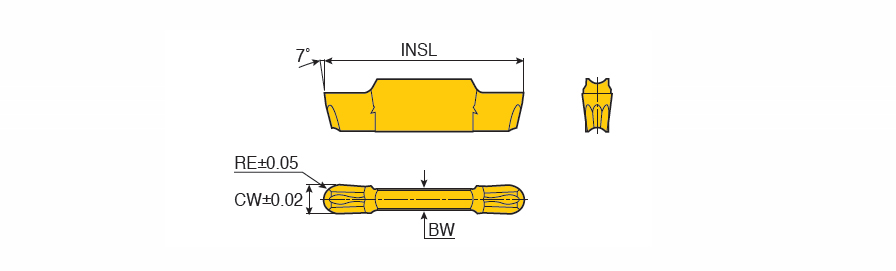

Additional Information	Cutting Width (CW): 3 mm Application:, Ext. Undercut, Inserts, Int. Grooving, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 1.5 mm Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 4.7 mm Insert Seat Size Code (SSC): 3 Insert Length (INSL): 20 mm Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT7220 Unit: M Cutting Edge Material: Carbide
