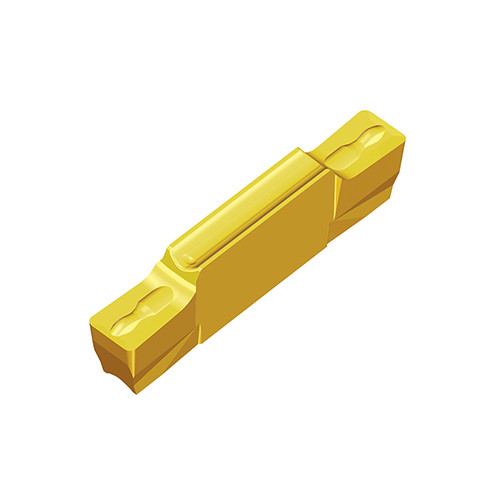

Taegutec TDIT 4.00E-0.40 K10

Product Code: 6400256

$43.05$39.14 Ex. GST

Product Code: 6400256 SKU 6400256 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision double-ended inserts for internal turning and grooving

Additional information

Weight 0.0056 kg
barcode
Additional Information

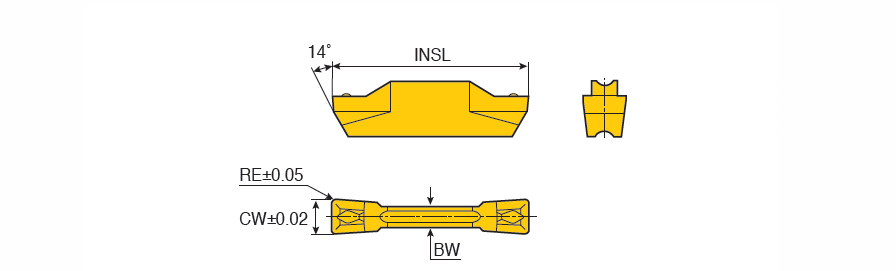

Cutting Width (CW): 4 mm
Application:, Inserts, Int. Groove & Turn, Int. Grooving, Corner Radius (RE): 0.4 mm
Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 4
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: Uncoated
Body Material: Carbide
Grade: K10
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
