Taegutec TDIT 4.00E-2.00 K10

Product Code: 6400365

$44.68$40.62 Ex. GST

Product Code: 6400365 SKU 6400365 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

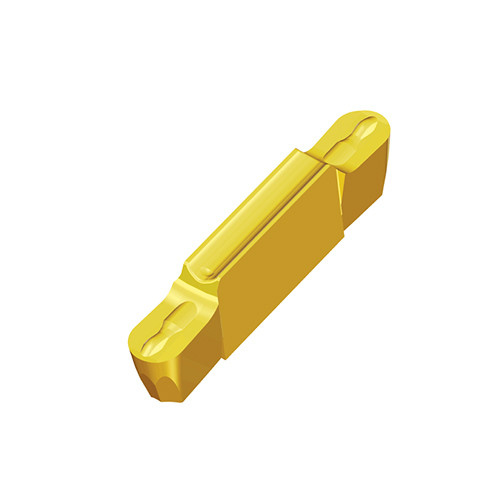

Precision double-ended Inserts for Internal Turning, Grooving, Profiling and Undercutting

Additional information

Weight 0.0054 kg
barcode
Additional Information

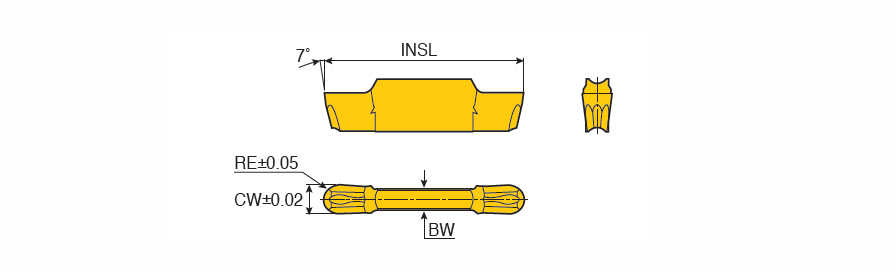

Cutting Width (CW): 4 mm
Application:, Ext. Undercut, Inserts, Int. Grooving, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 2 mm
Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 4
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: Uncoated
Body Material: Carbide
Grade: K10
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
