Taegutec TDJ 4-15L TT8020

Product Code: 6000364

$42.22$38.38 Ex. GST

Product Code: 6000364 SKU 6000364 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

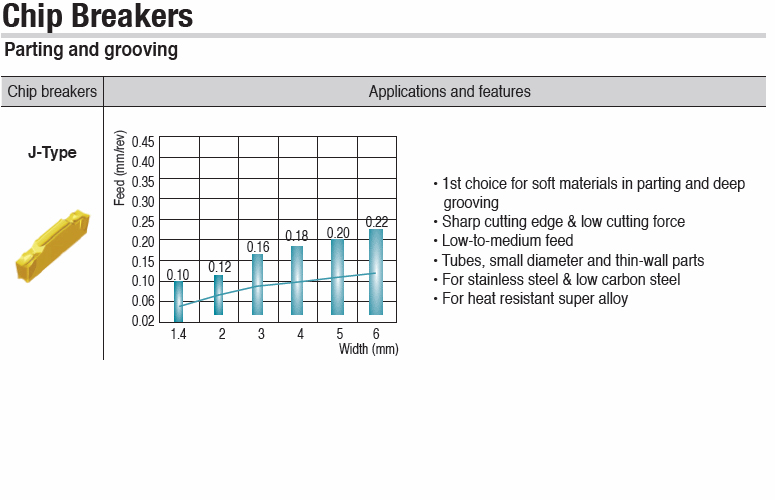

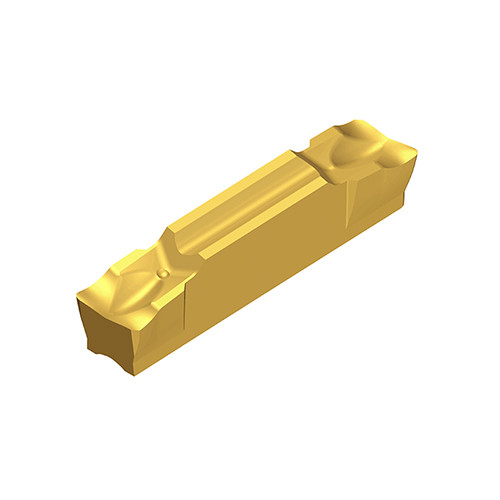

Double-ended inserts with lead angle & J-Type chip breaker for Parting of soft materials, tubes, small diameters and thin-walled parts in low-to-medium feed and low cutting forces & small burrs

Additional information

Weight	0.0051 kg
Dimensions
barcode

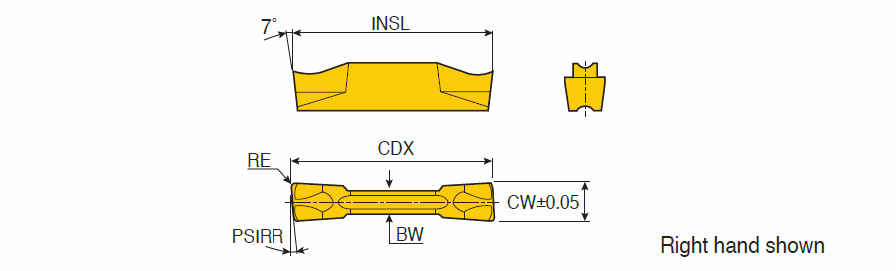

Additional Information	Cutting Width (CW): 4 mm Application:, Inserts, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 20 mm Height: 4.7 mm Cutting Depth Maximum (CDX): 19 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M Grade: TT8020
