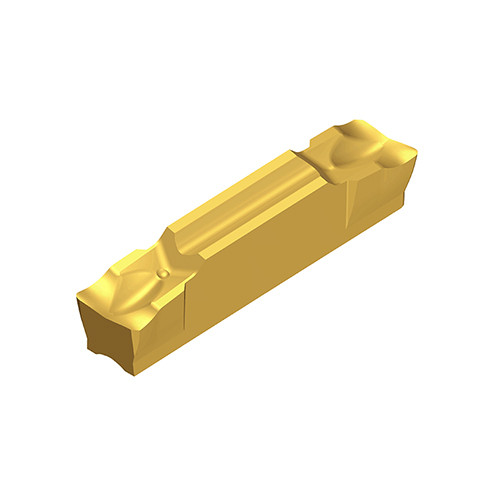

Taegutec TDJ 5-4R K10

Product Code: 6308661

$35.46$32.24 Ex. GST

Product Code: 6308661 SKU 6308661 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

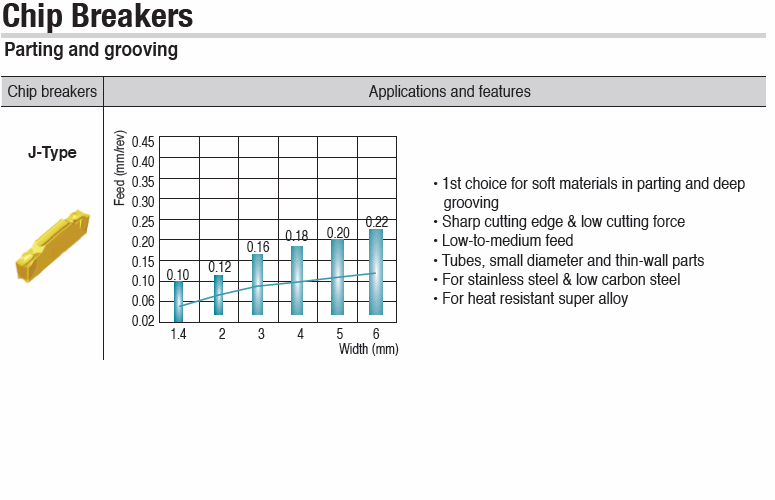

Double-ended inserts with lead angle & J-Type chip breaker for Parting of soft materials, tubes, small diameters and thin-walled parts in low-to-medium feed and low cutting forces & small burrs

Additional information

Weight	0.0066 kg
Dimensions
barcode

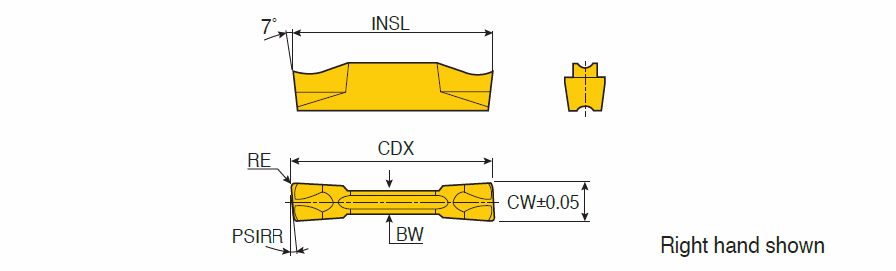

Additional Information	Cutting Width (CW): 5 mm Application:, Inserts, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Overall Length (OAL): 25 mm Height: 5.2 mm Cutting Depth Maximum (CDX): 24 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M Grade: K10
