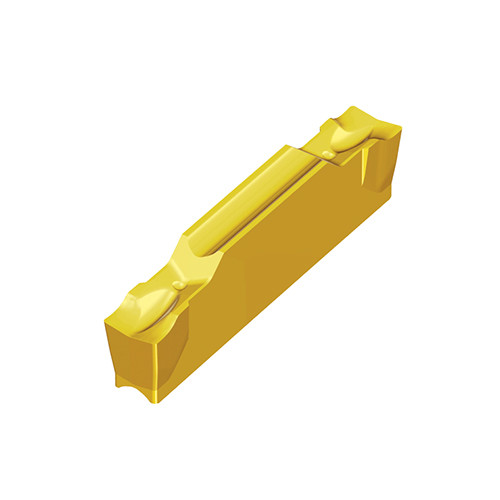

Taegutec TDJ 5 TT9080

Product Code: 6001111

$45.99$41.81 Ex. GST

Product Code: 6001111 SKU 6001111 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

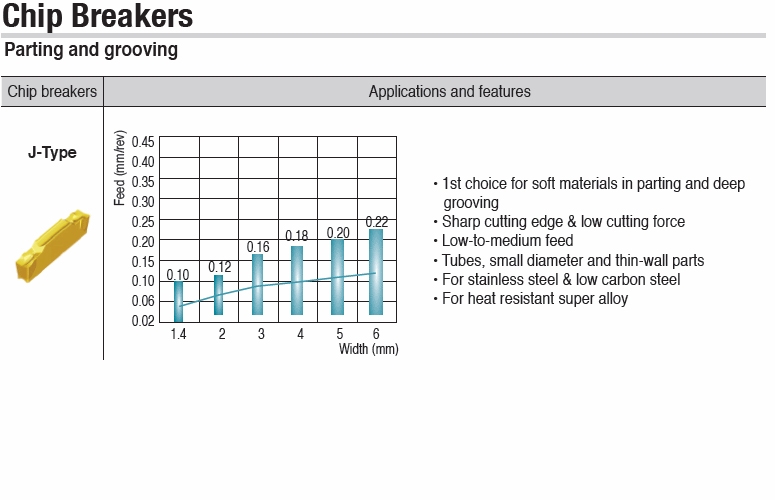

Double-ended inserts with J-Type chip breaker for Parting & Grooving of soft materials, tubes, small diameter & thin-walled parts in low-to-medium feed & low cutting forces & smaller burrs

Additional information

Weight	0.0088 kg
Dimensions
barcode

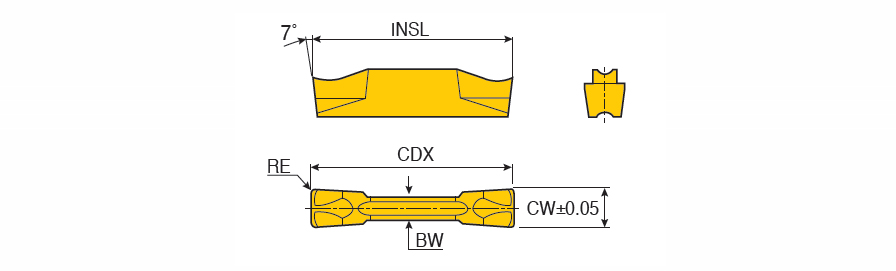

Additional Information	Cutting Width (CW): 5 mm Application:, Ext. Grooving, Face Grooving, Inserts, Int. Grooving, Parting, Corner Radius (RE): 0.3 mm Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Overall Length (OAL): 25 mm Height: 5.2 mm Cutting Depth Maximum (CDX): 24 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiAlN+TiN Unit: M Grade: TT9080
