Taegutec TDM 222 W25-06

Product Code: 3101400

$583.96$530.87 Ex. GST

Product Code: 3101400 SKU 3101400 Categories Carbide, CUTTING TOOLS (HSS & Carbide), MILLING CUTTER

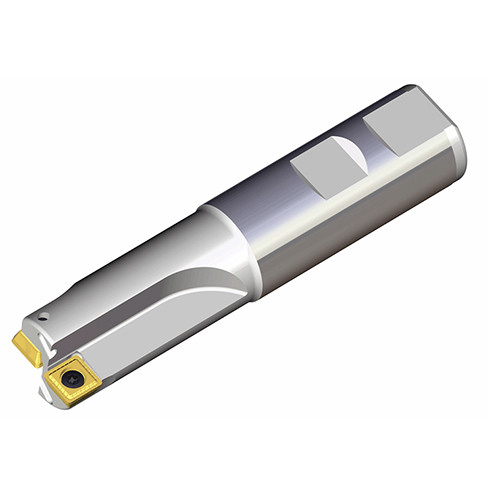

Taegutec TDM 222 W25-06

Taegutec TDM 222 W25-06 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Drilling & milling end mills with XOMT 06 inserts

Additional information

Weight	0.3600 kg
Dimensions
barcode

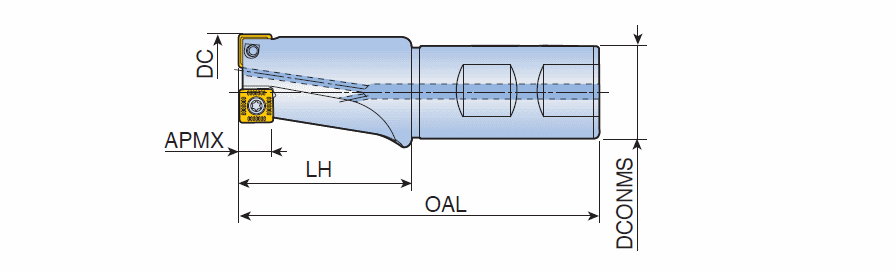

Additional Information	Cutting Diameter (DC/DCX): 22 mm Connection Diameter Machine Side (DCONMS): 25 mm Cutting Diameter (DC): 22 mm Master Insert Identification (MIID): XOMT 060204 Cutting Item Count (CICT): 2 Head Length (LH): 47 mm Depth of Cut Maximum (APMX): 5.6 mm Measurement Type: Metric Overall Length (OAL): 110 mm Body Material: Steel Shank Type: Weldon Unit: M Application:, Counter Boring, Drill Mill, Facing, Helical Interpolation, Rampdown, Shouldering, Side Plunging, Slotting, Step down machining

Brand

Taegutec
