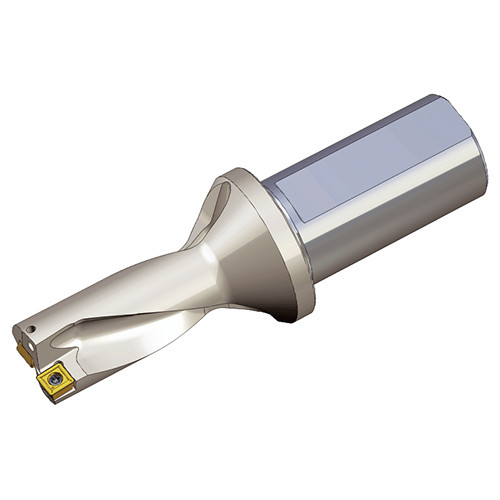

Taegutec TDR 2125-20T2-05

Product Code: 6180713

$582.23$529.30 Ex. GST

Product Code: 6180713 SKU 6180713 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 0.1600 kg
Dimensions
barcode

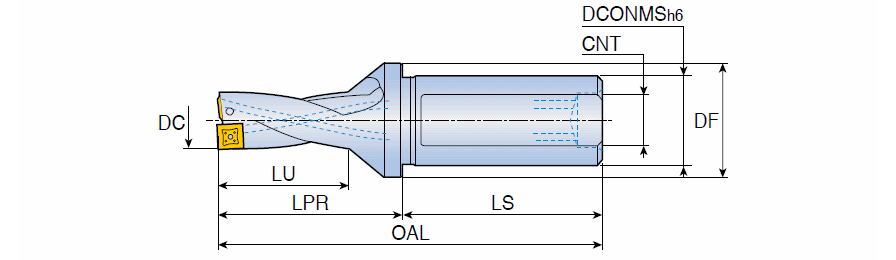

Additional Information

Cutting Diameter (DC): 12.5 mm
Overall Length (OAL): 94 mm
Usable Length (LU): 26 mm
Connection Thread Size (Ts): M13X1.0
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 20 mm
Length Group: 2xD
Shank Length (LS): 50 mm
Body Material: Steel
Functional Length (LF): 44 mm
Unit: M

Brand

Taegutec
