Taegutec TDR 2185-25T2-06

Product Code: 3200774

$593.76$539.78 Ex. GST

Product Code: 3200774 SKU 3200774 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

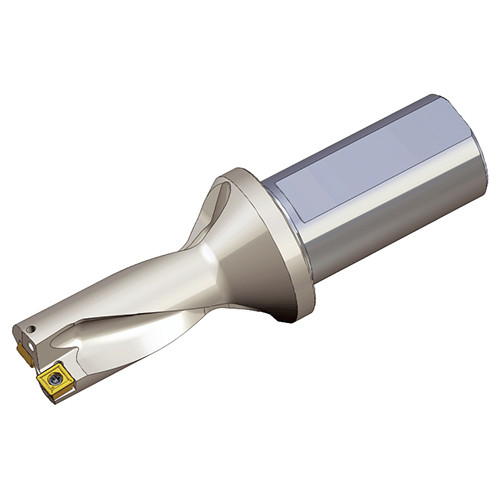

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 0.3600 kg
Dimensions
barcode
Additional Information

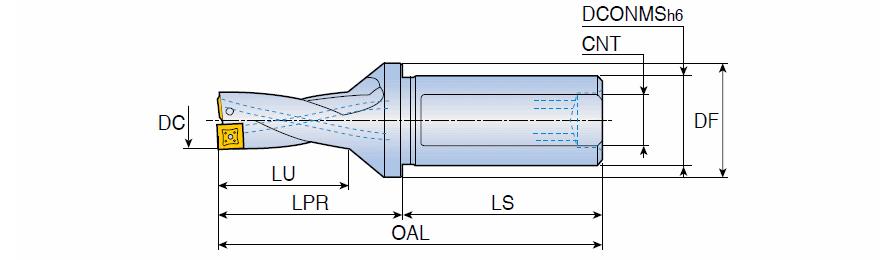

Cutting Diameter (DC): 18.5 mm
Overall Length (OAL): 115 mm
Usable Length (LU): 38 mm
Connection Thread Size (Ts): M16X1.5
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 2xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 59 mm
Unit: M

Brand

Taegutec
