Taegutec TDR 2230-32T2-07

Product Code: 3200573

$618.40$562.18 Ex. GST

Product Code: 3200573 SKU 3200573 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

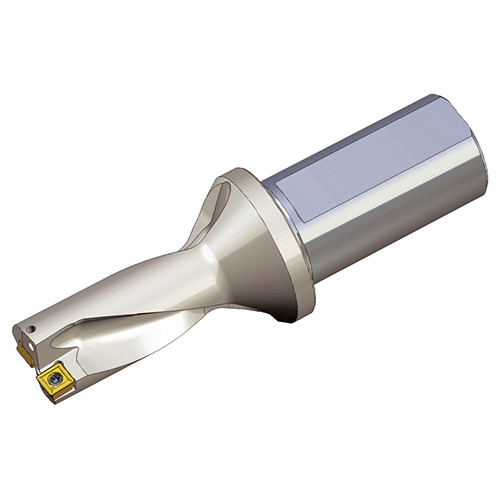

Taegutec TDR 2230-32T2-07

Taegutec TDR 2230-32T2-07 - Image 2

Taegutec TDR 2230-32T2-07 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight	0.5600 kg
Dimensions
barcode

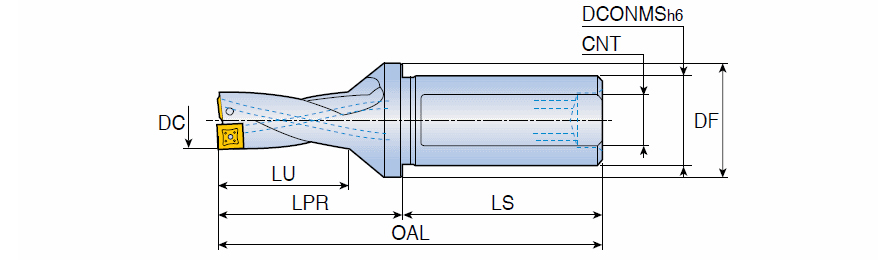

Additional Information	Cutting Diameter (DC): 23 mm Overall Length (OAL): 131 mm Usable Length (LU): 46 mm Connection Thread Size (Ts): M22X2.0 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 2xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 71 mm Unit: M

Brand

Taegutec
