Taegutec TDR 2265-25T2-07

Product Code: 6180870

$672.66$611.51 Ex. GST

Product Code: 6180870 SKU 6180870 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

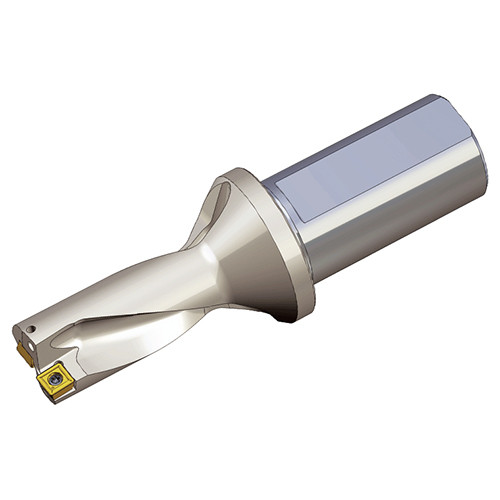

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 0.5000 kg
Dimensions
barcode
Additional Information

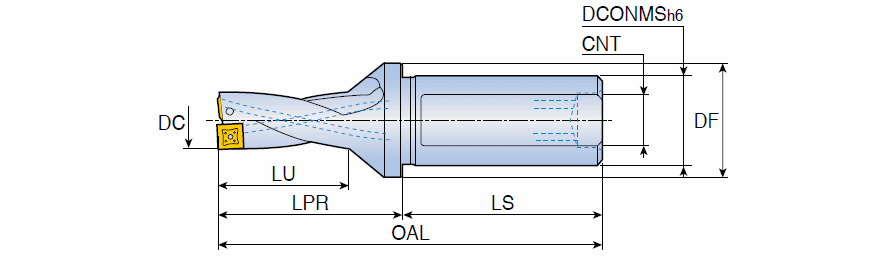

Cutting Diameter (DC): 26.5 mm
Overall Length (OAL): 137 mm
Usable Length (LU): 54 mm
Connection Thread Size (Ts): M16X1.5
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 2xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 81 mm
Unit: M

Brand

Taegutec
