Taegutec TDR 2280-25T2-09

Product Code: 6180833

$672.66$611.51 Ex. GST

Product Code: 6180833 SKU 6180833 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

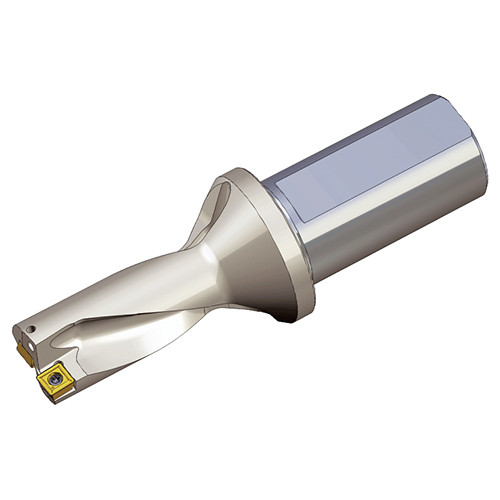

Taegutec TDR 2280-25T2-09

Taegutec TDR 2280-25T2-09 - Image 2

Taegutec TDR 2280-25T2-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight	0.5000 kg
Dimensions
barcode

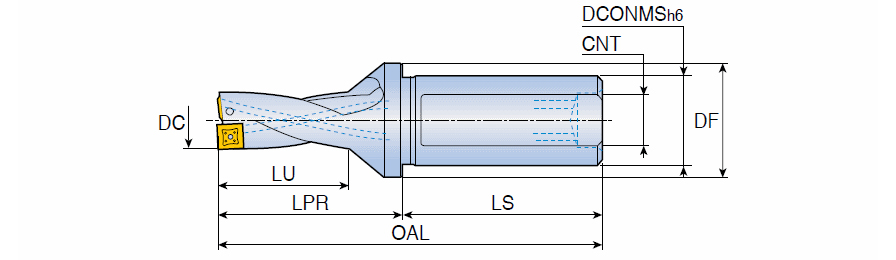

Additional Information	Cutting Diameter (DC): 28 mm Overall Length (OAL): 140 mm Usable Length (LU): 56 mm Connection Thread Size (Ts): Rc 1/8 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 2xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 84 mm Unit: M

Brand

Taegutec
