Taegutec TDR 2325-32T2-09

Product Code: 6180970

$759.86$690.78 Ex. GST

Product Code: 6180970 SKU 6180970 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

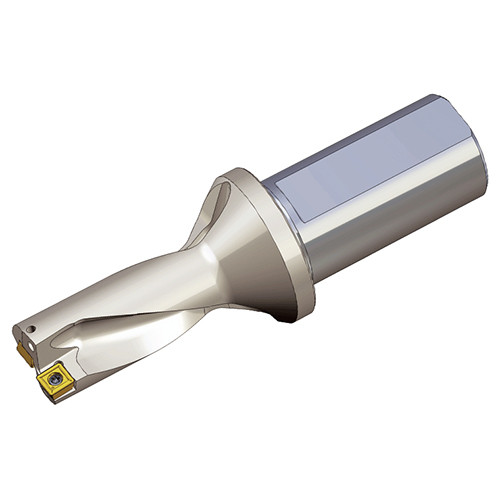

Taegutec TDR 2325-32T2-09

Taegutec TDR 2325-32T2-09 - Image 2

Taegutec TDR 2325-32T2-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight	0.8900 kg
Dimensions
barcode

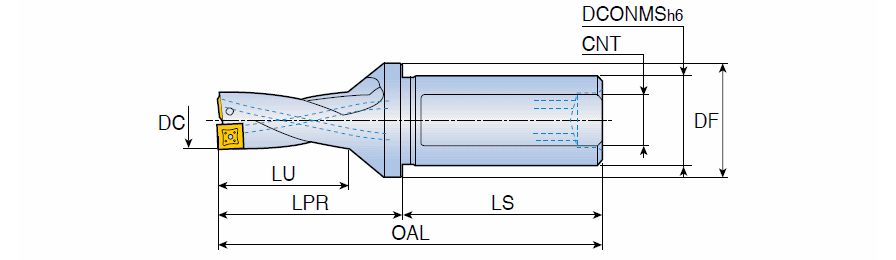

Additional Information	Cutting Diameter (DC): 32.5 mm Overall Length (OAL): 159 mm Usable Length (LU): 66 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 2xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 99 mm Unit: M

Brand

Taegutec
