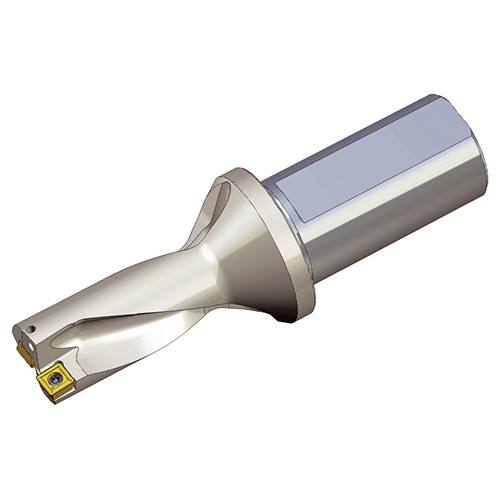

Taegutec TDR 2340-32T2-11

Product Code: 6180834

$779.57$708.70 Ex. GST

Product Code: 6180834 SKU 6180834 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 1.0200 kg
Dimensions
barcode

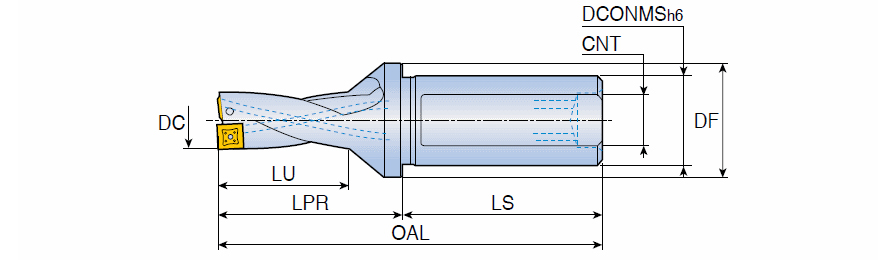

Additional Information

Cutting Diameter (DC): 34 mm
Overall Length (OAL): 161 mm
Usable Length (LU): 68 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 2xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 101 mm
Unit: M

Brand

Taegutec
