Taegutec TDR 2390-40T2-11

Product Code: 3200224

$815.80$741.64 Ex. GST

Product Code: 3200224 SKU 3200224 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

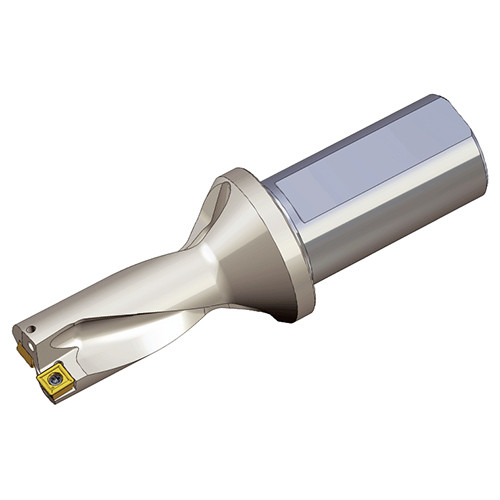

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 0.3600 kg
Dimensions
barcode
Additional Information

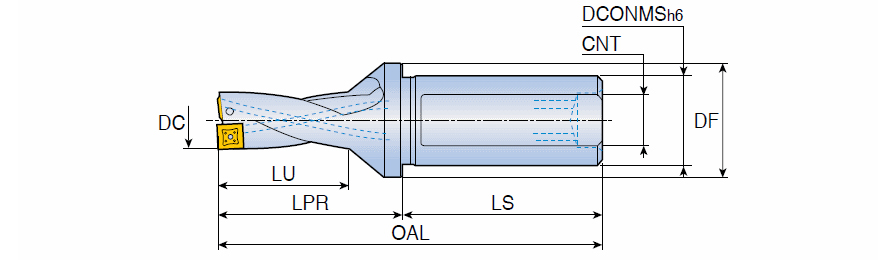

Cutting Diameter (DC): 39 mm
Overall Length (OAL): 185 mm
Usable Length (LU): 78 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Length Group: 2xD
Shank Length (LS): 70 mm
Body Material: Steel
Functional Length (LF): 115 mm
Unit: M

Brand

Taegutec
