Taegutec TDR 2420-40T2-14

Product Code: 6180811

$855.23$777.48 Ex. GST

Product Code: 6180811 SKU 6180811 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

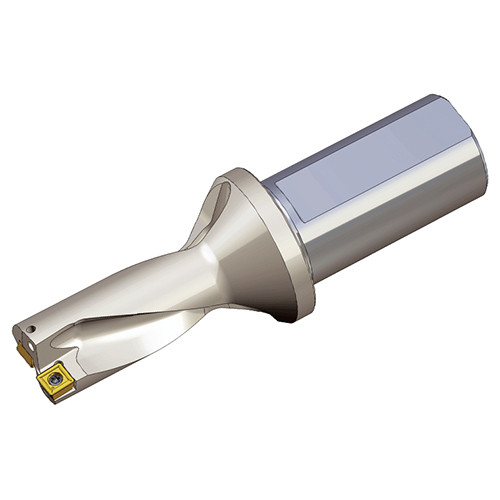

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 2xD

Additional information

Weight 1.6600 kg
Dimensions
barcode
Additional Information

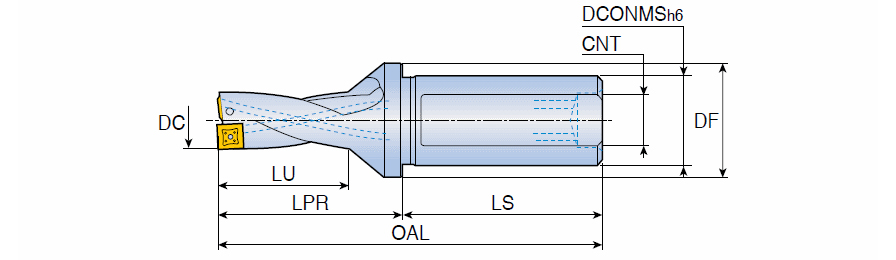

Cutting Diameter (DC): 42 mm
Overall Length (OAL): 193 mm
Usable Length (LU): 84 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Length Group: 2xD
Shank Length (LS): 70 mm
Body Material: Steel
Functional Length (LF): 123 mm
Unit: M

Brand

Taegutec
