Taegutec TDR 3239-25T2-07

Product Code: 3202136

$652.95$593.59 Ex. GST

Product Code: 3202136 SKU 3202136 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

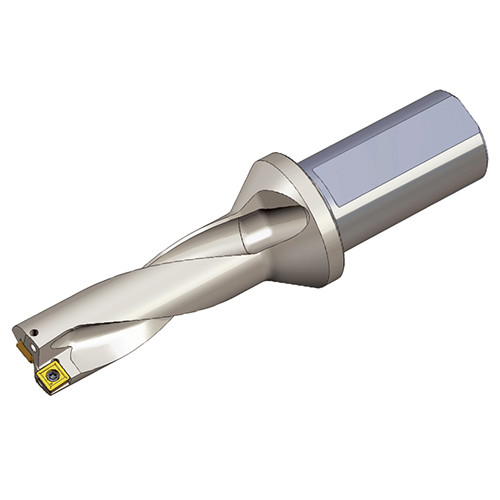

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Weight	0.4500 kg
Dimensions
barcode

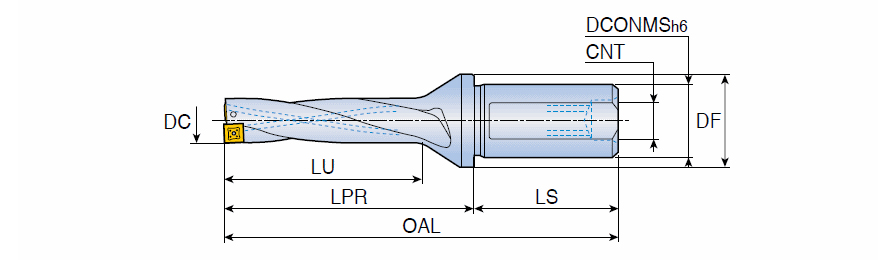

Additional Information	Cutting Diameter (DC): 23.9 mm Overall Length (OAL): 154 mm Usable Length (LU): 72 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 3xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 98 mm Unit: M
