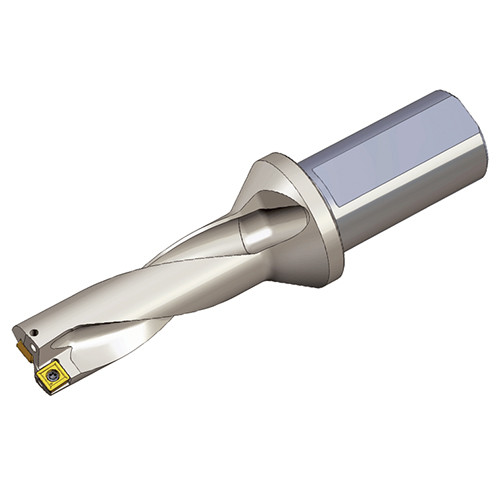

Taegutec TDR 3265-25T2-07

Product Code: 6180881

$712.15$647.41 Ex. GST

Product Code: 6180881 SKU 6180881 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Additional information

Weight 0.5500 kg
Dimensions
barcode
Additional Information

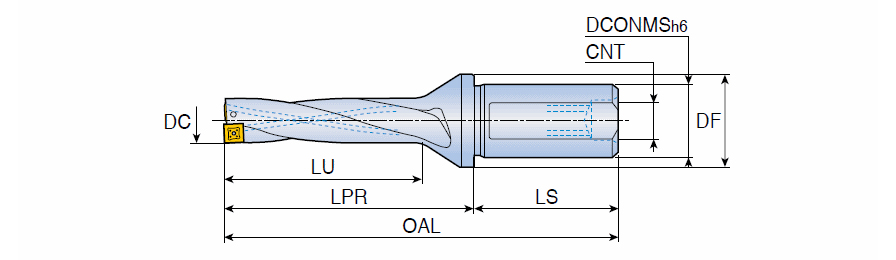

Cutting Diameter (DC): 26.5 mm
Overall Length (OAL): 164 mm
Usable Length (LU): 81 mm
Connection Thread Size (Ts): M16X1.5
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 3xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 108 mm
Unit: M

Brand

Taegutec
