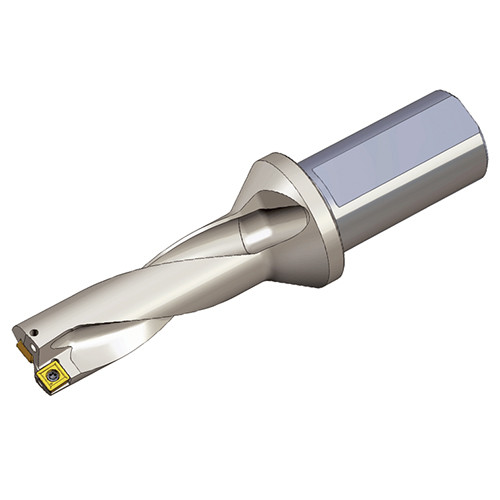

Taegutec TDR 3280-32T2-09

Product Code: 6180813

$712.15$647.41 Ex. GST

Product Code: 6180813 SKU 6180813 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Additional information

Weight 0.8350 kg
Dimensions
barcode
Additional Information

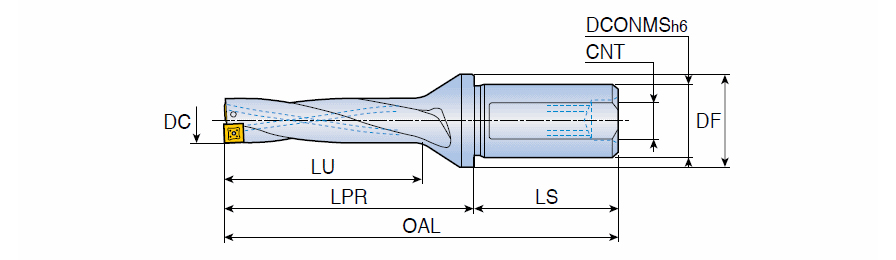

Cutting Diameter (DC): 28 mm
Overall Length (OAL): 172 mm
Usable Length (LU): 84 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 3xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 112 mm
Unit: M

Brand

Taegutec
