Taegutec TDR 3330-32T2-09

Product Code: 3200695

$802.64$729.67 Ex. GST

Product Code: 3200695 SKU 3200695 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

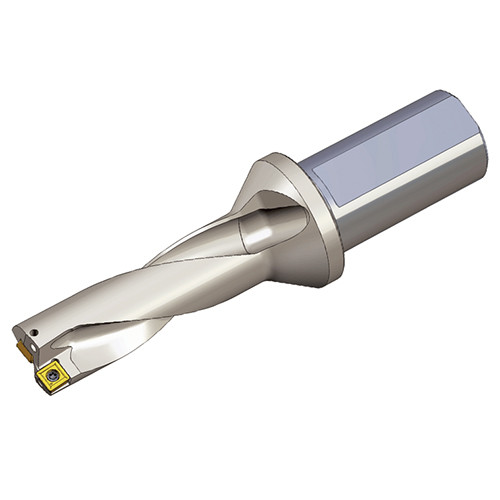

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Weight	0.9900 kg
Dimensions
barcode

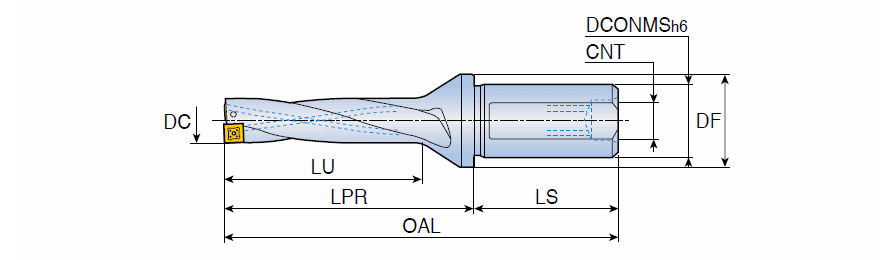

Additional Information	Cutting Diameter (DC): 33 mm Overall Length (OAL): 192 mm Usable Length (LU): 99 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 3xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 132 mm Unit: M
