Taegutec TDR 3340-32T2-11

Product Code: 6180838

$817.42$743.11 Ex. GST

Product Code: 6180838 SKU 6180838 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

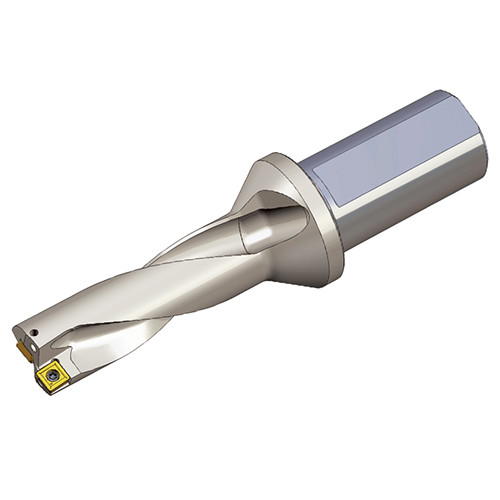

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

Additional information

Weight 1.1540 kg
Dimensions
barcode
Additional Information

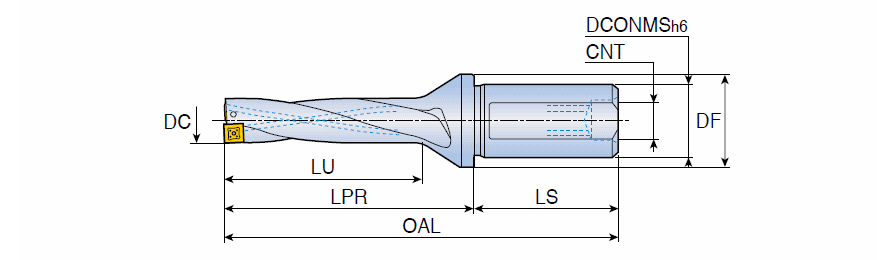

Cutting Diameter (DC): 34 mm
Overall Length (OAL): 195 mm
Usable Length (LU): 102 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 3xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 135 mm
Unit: M
