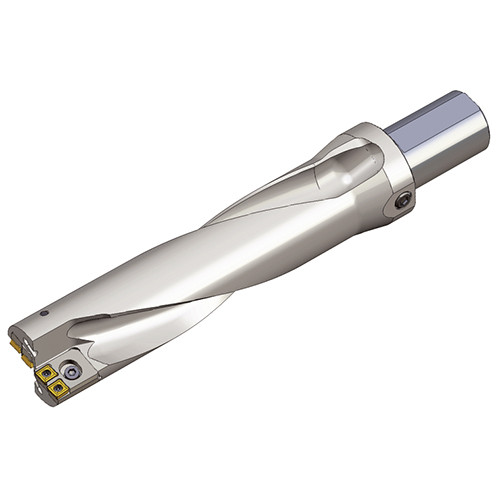

Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 3.5xD
Additional information
Weight
3.4600 kg
Dimensions
barcode
Additional Information

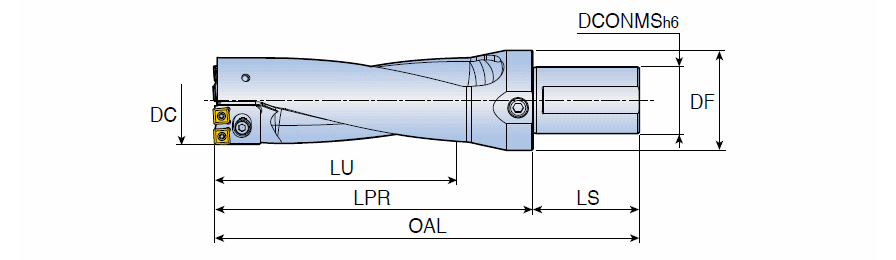

Usable Length (LU): 186 mm
Cutting Diameter Minimum (DCN): 51 mm
Application:, Drilling, Cutting Diameter Maximum (DCX): 53 mm
Connection Diameter Machine Side (DCONMS): 50 mm
Measurement Type: Metric
Shank Length (LS): 80 mm
Length Group: 3xD
Functional Length (LF): 223 mm
Body Material: Steel
Overall Length (OAL): 303 mm
Unit: M
