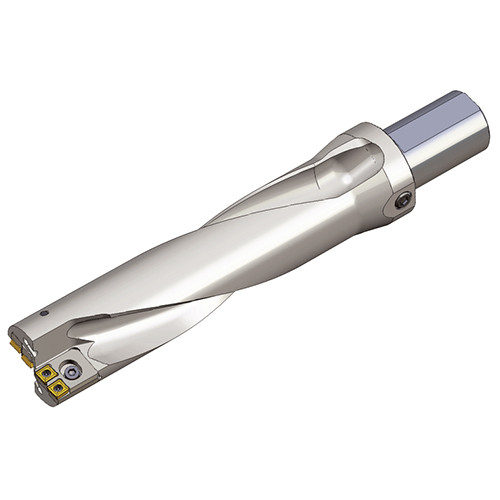

Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 3.5xD
Additional information
Weight
7.4600 kg
Dimensions
barcode
Additional Information

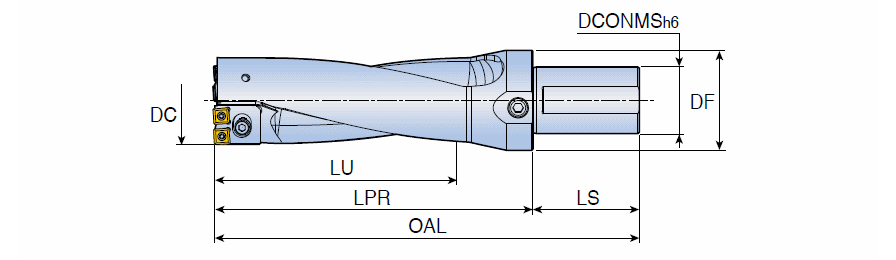

Usable Length (LU): 280 mm
Cutting Diameter Minimum (DCN): 74 mm
Application:, Drilling, Cutting Diameter Maximum (DCX): 80 mm
Connection Diameter Machine Side (DCONMS): 50 mm
Measurement Type: Metric
Shank Length (LS): 80 mm
Length Group: 3xD
Functional Length (LF): 330 mm
Body Material: Steel
Overall Length (OAL): 410 mm
Unit: M
