Taegutec TDR 4185-25T2-06

Product Code: 3200785

$715.45$650.41 Ex. GST

Product Code: 3200785 SKU 3200785 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

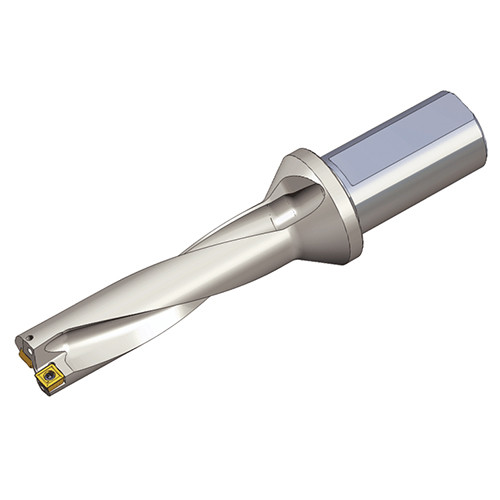

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Weight	0.3500 kg
Dimensions
barcode

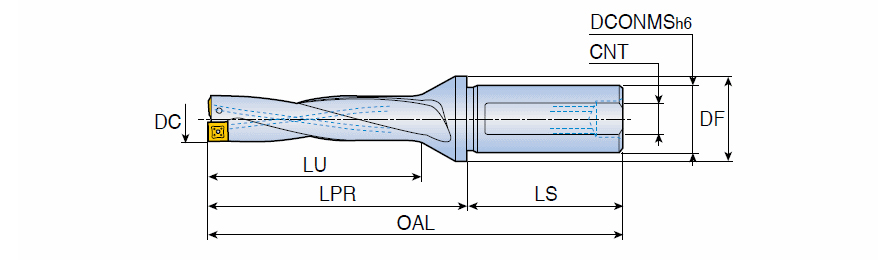

Additional Information	Cutting Diameter (DC): 18.5 mm Overall Length (OAL): 153 mm Usable Length (LU): 76 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 4xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 97 mm Unit: M
