Taegutec TDR 4245-32T2-07

Product Code: 6180892

$748.33$680.30 Ex. GST

Product Code: 6180892 SKU 6180892 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

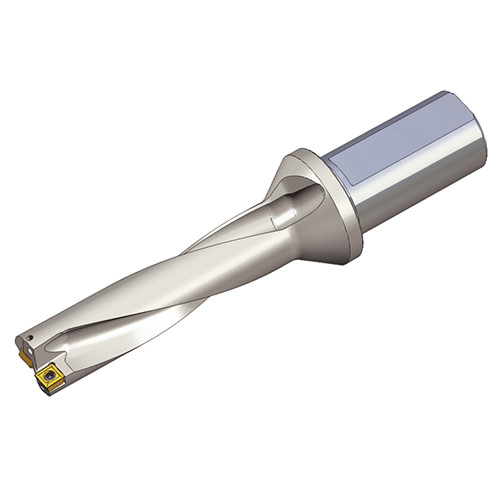

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Additional information

Weight 0.7400 kg
Dimensions
barcode

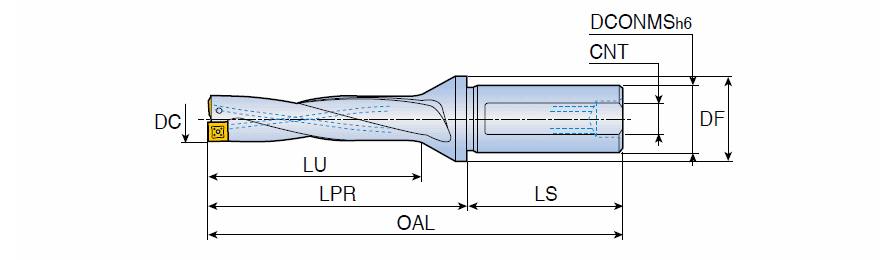

Additional Information

Cutting Diameter (DC): 24.5 mm
Overall Length (OAL): 187 mm
Usable Length (LU): 100 mm
Connection Thread Size (Ts): M22X2.0
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 4xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 127 mm
Unit: M
