Taegutec TDR 4295-40T2-09

Product Code: 6180900

$814.12$740.11 Ex. GST

Product Code: 6180900 SKU 6180900 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

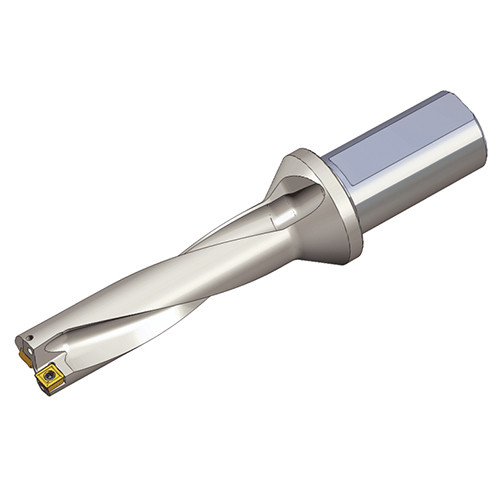

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Weight	1.5000 kg
Dimensions
barcode

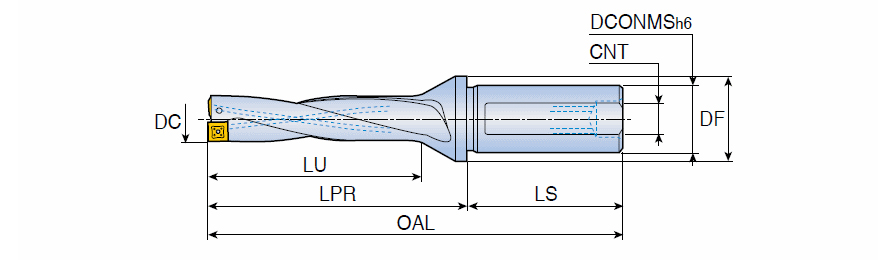

Additional Information	Cutting Diameter (DC): 29.5 mm Overall Length (OAL): 221 mm Usable Length (LU): 120 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 4xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 151 mm Unit: M
