Taegutec TDR 4310-32T2-09

Product Code: 6180688

$917.73$834.30 Ex. GST

Product Code: 6180688 SKU 6180688 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

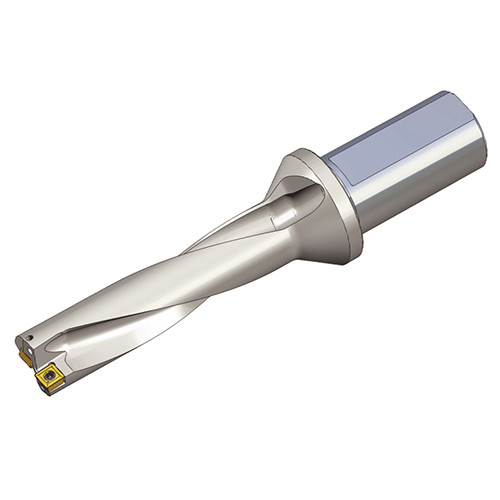

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Weight	1.0000 kg
Dimensions
barcode

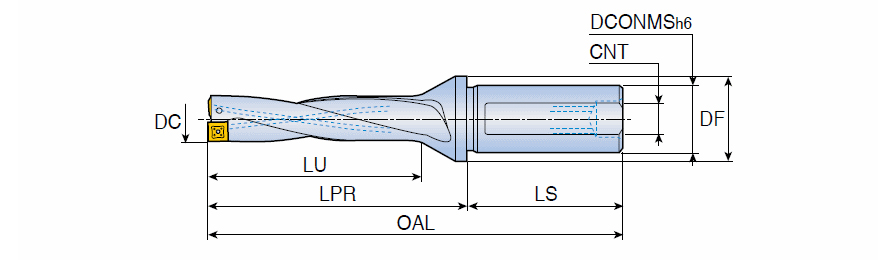

Additional Information	Cutting Diameter (DC): 31 mm Overall Length (OAL): 216 mm Usable Length (LU): 124 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 4xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 156 mm Unit: M
