Taegutec TDR 4360-40T2-11

Product Code: 3201241

$940.80$855.27 Ex. GST

Product Code: 3201241 SKU 3201241 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

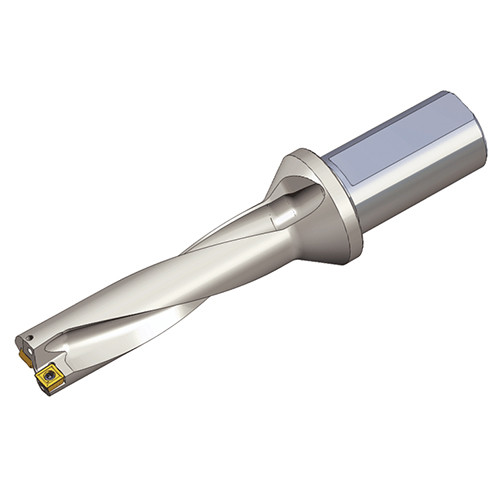

Taegutec TDR 4360-40T2-11

Taegutec TDR 4360-40T2-11 - Image 2

Taegutec TDR 4360-40T2-11 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Additional information

Weight	1.6200 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 36 mm Overall Length (OAL): 249 mm Usable Length (LU): 144 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 4xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 179 mm Unit: M

Brand

Taegutec
