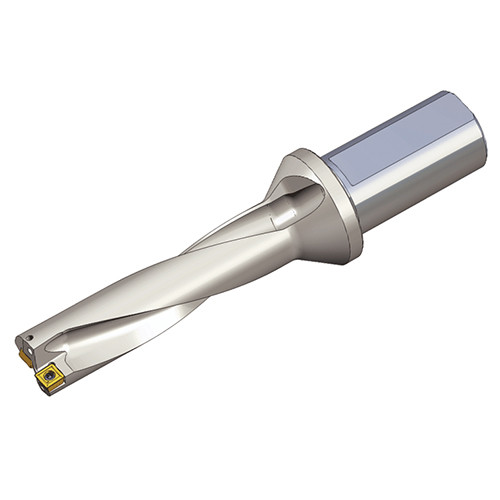

Taegutec TDR 4370-40T2-11

Product Code: 3200219

$993.42$903.11 Ex. GST

Product Code: 3200219 SKU 3200219 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Weight	1.6800 kg
Dimensions
barcode

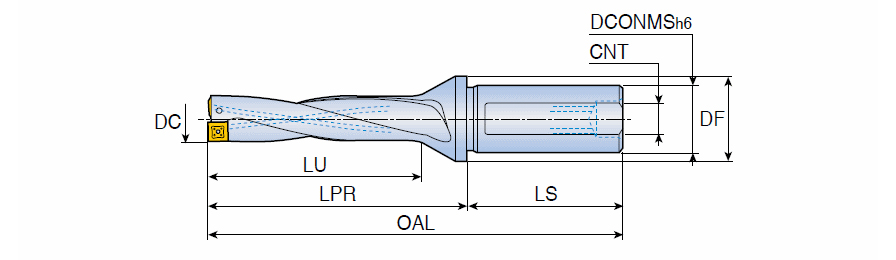

Additional Information	Cutting Diameter (DC): 37 mm Overall Length (OAL): 254 mm Usable Length (LU): 148 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 4xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 184 mm Unit: M
