Taegutec TDR 4380-32T2-11

Product Code: 3200710

$993.42$903.11 Ex. GST

Product Code: 3200710 SKU 3200710 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

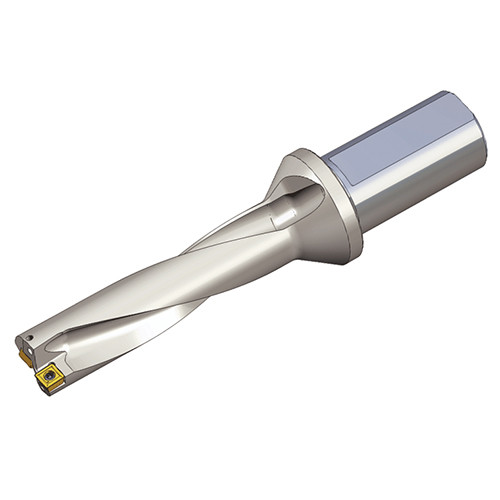

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Additional information

Weight 1.4700 kg
Dimensions
barcode
Additional Information

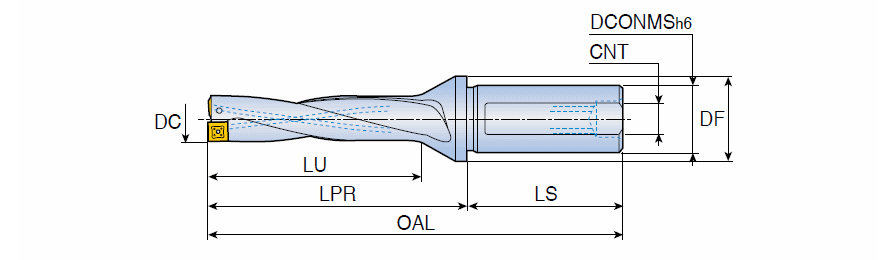

Cutting Diameter (DC): 38 mm
Overall Length (OAL): 249 mm
Usable Length (LU): 152 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 4xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 189 mm
Unit: M

Brand

Taegutec
