Taegutec TDR 4430-40T2-14

Product Code: 3201243

$1,037.84$943.49 Ex. GST

Product Code: 3201243 SKU 3201243 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

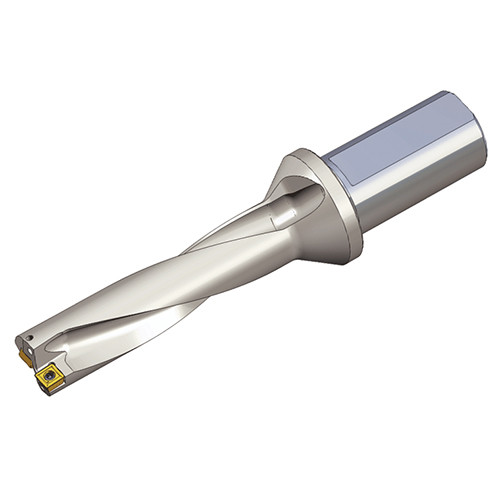

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Additional information

Weight 2.1450 kg
Dimensions
barcode
Additional Information

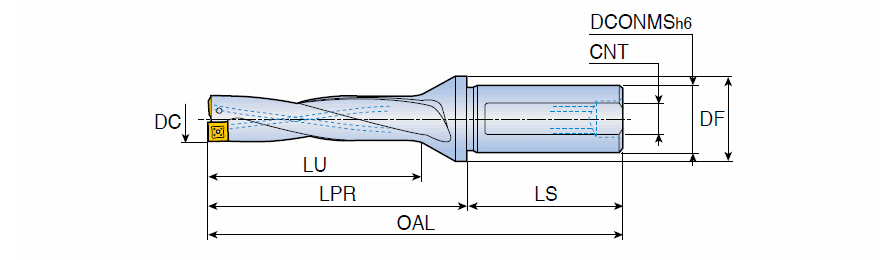

Cutting Diameter (DC): 43 mm
Overall Length (OAL): 282 mm
Usable Length (LU): 172 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Length Group: 4xD
Shank Length (LS): 70 mm
Body Material: Steel
Functional Length (LF): 212 mm
Unit: M
