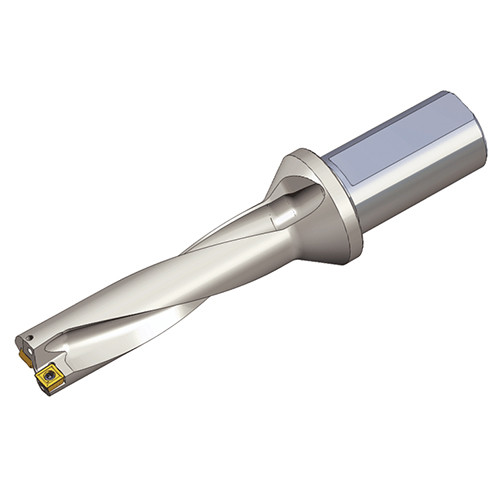

Taegutec TDR 4440-40T2-14

Product Code: 3200231

$1,037.84$943.49 Ex. GST

Product Code: 3200231 SKU 3200231 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 4xD

Additional information

Weight 2.1900 kg
Dimensions
barcode

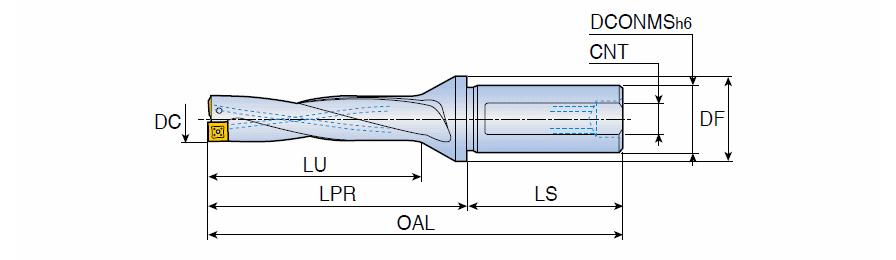

Additional Information

Cutting Diameter (DC): 44 mm
Overall Length (OAL): 286 mm
Usable Length (LU): 176 mm
Connection Thread Size (Ts): Rc 1/4
Application:, Drilling, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Length Group: 4xD
Shank Length (LS): 70 mm
Body Material: Steel
Functional Length (LF): 216 mm
Unit: M

Brand

Taegutec
