Taegutec TDR 5205-25T2-06

Product Code: 3201697

$825.66$750.60 Ex. GST

Product Code: 3201697 SKU 3201697 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

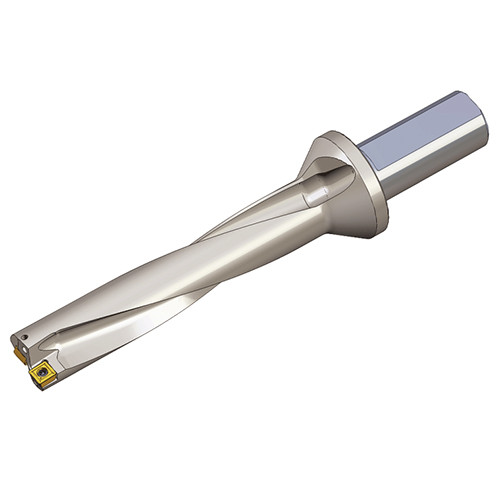

Taegutec TDR 5205-25T2-06

Taegutec TDR 5205-25T2-06 - Image 2

Taegutec TDR 5205-25T2-06 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Additional information

Weight	0.4300 kg
Dimensions
barcode

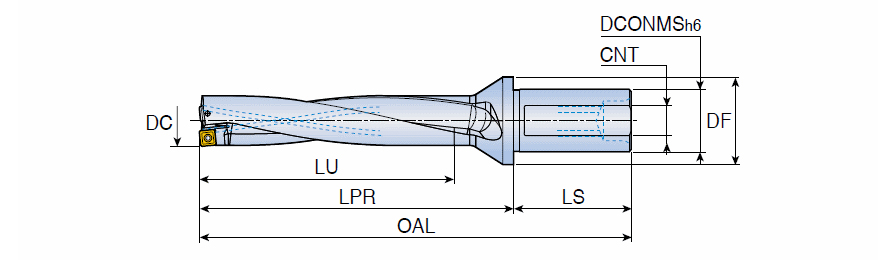

Additional Information	Cutting Diameter (DC): 20.5 mm Overall Length (OAL): 184 mm Usable Length (LU): 105 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 5xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 128 mm Unit: M

Brand

Taegutec
