Taegutec TDR 5370-40T2-11

Product Code: 3201728

$1,089.31$990.28 Ex. GST

Product Code: 3201728 SKU 3201728 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

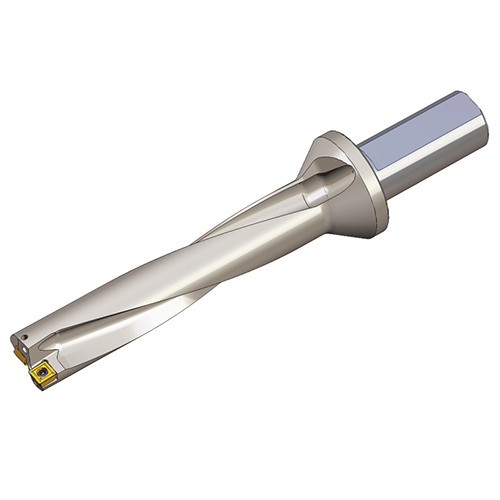

Taegutec TDR 5370-40T2-11

Taegutec TDR 5370-40T2-11 - Image 2

Taegutec TDR 5370-40T2-11 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Additional information

Weight	1.8300 kg
Dimensions
barcode

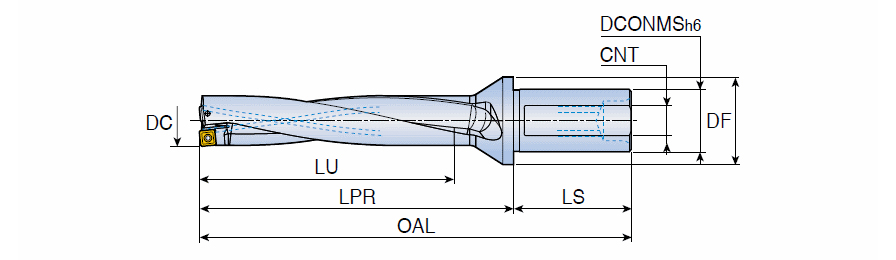

Additional Information	Cutting Diameter (DC): 37 mm Overall Length (OAL): 291 mm Usable Length (LU): 185 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 5xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 221 mm Unit: M

Brand

Taegutec
