Taegutec TDR 5450-40T2-14

Product Code: 6181055

$1,221.36$1,110.33 Ex. GST

Product Code: 6181055 SKU 6181055 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

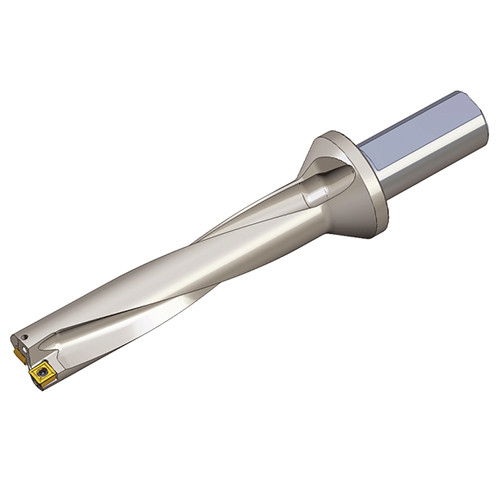

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Weight	2.5000 kg
Dimensions
barcode

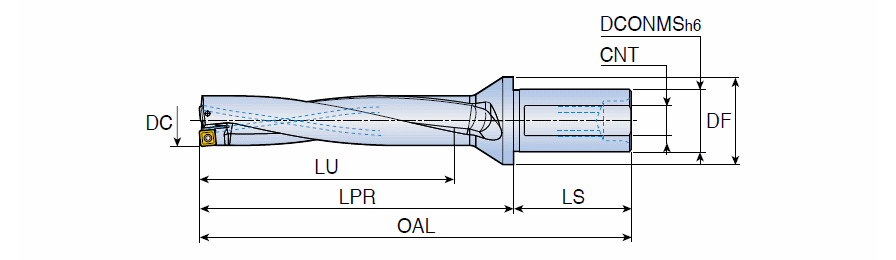

Additional Information	Cutting Diameter (DC): 45 mm Overall Length (OAL): 337 mm Usable Length (LU): 225 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 5xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 267 mm Unit: M
