Taegutec TDR 5480-40T2-14

Product Code: 3202308

$1,221.36$1,110.33 Ex. GST

Product Code: 3202308 SKU 3202308 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

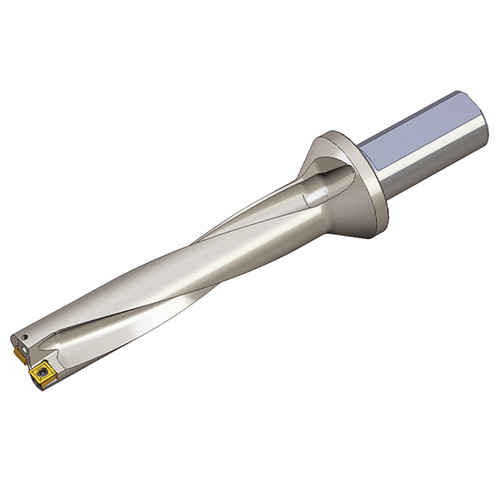

Taegutec TDR 5480-40T2-14

Taegutec TDR 5480-40T2-14 - Image 2

Taegutec TDR 5480-40T2-14 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

Additional information

Weight	2.8900 kg
Dimensions
barcode

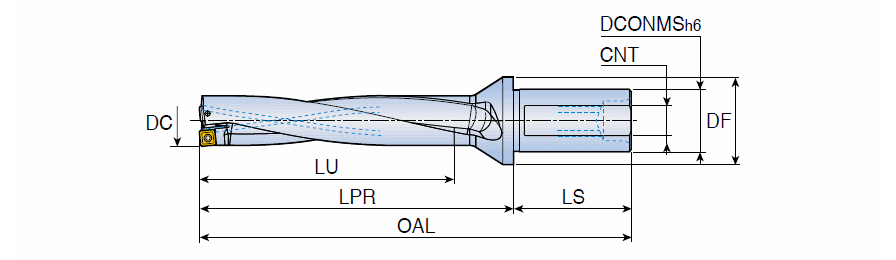

Additional Information	Cutting Diameter (DC): 48 mm Overall Length (OAL): 354 mm Usable Length (LU): 240 mm Connection Thread Size (Ts): Rc 1/4 Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 5xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 284 mm Unit: M

Brand

Taegutec
