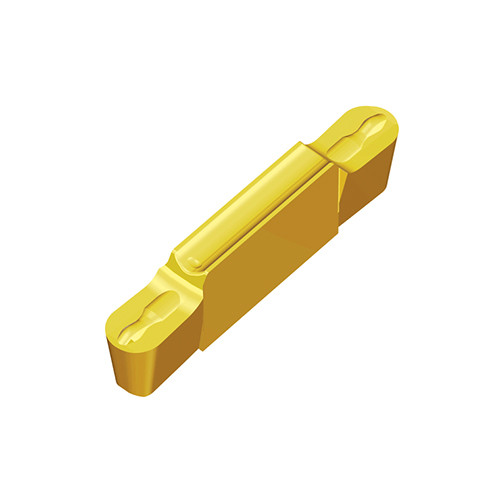

Taegutec TDT 3.00E-1.50 K10

Product Code: 6400216

$43.89$39.90 Ex. GST

Product Code: 6400216 SKU 6400216 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Precision double-ended inserts for Eternal grooving and profiling

Additional information

Weight 0.0043 kg
barcode
Additional Information

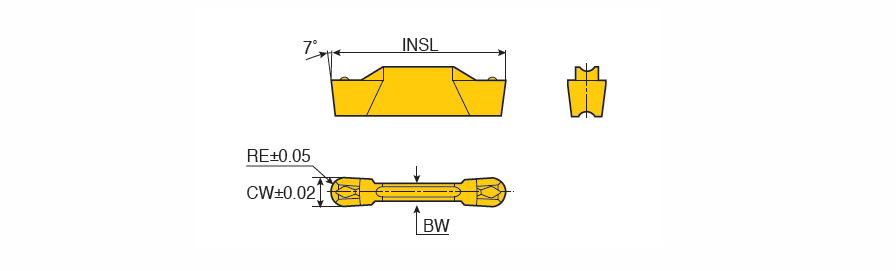

Cutting Width (CW): 3 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 1.5 mm
Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 3
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: Uncoated
Body Material: Carbide
Grade: K10
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
