Taegutec TDT 3.15E-0.15 TT5100

Product Code: 6400658

$54.95$49.95 Ex. GST

Product Code: 6400658 SKU 6400658 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

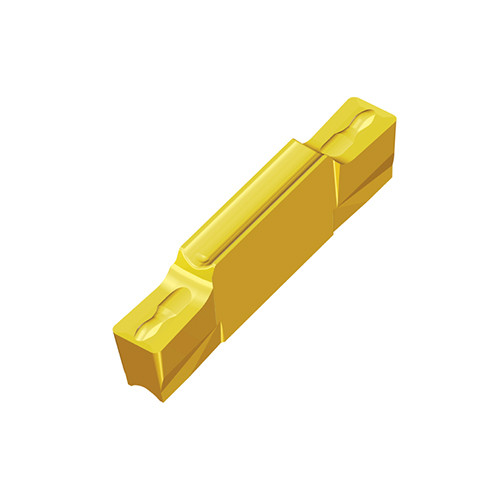

Precision double-ended inserts for external grooving

Additional information

Weight 0.0044 kg
barcode
Additional Information

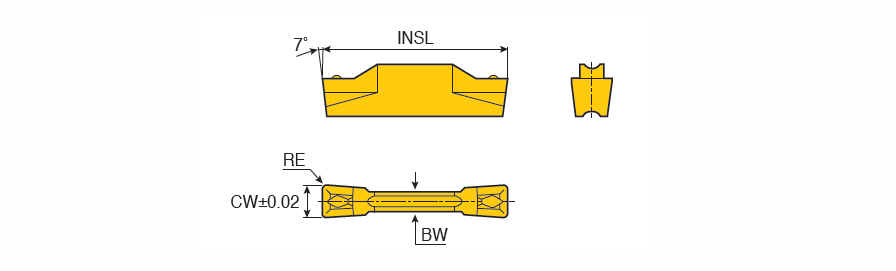

Cutting Width (CW): 3.15 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Inserts, Int. Groove & Turn, Int. Grooving, Parting, Corner Radius (RE): 0.15 mm
Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 3
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: TiCN+Al2O3+TiN
Body Material: Carbide
Grade: TT5100
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
