Taegutec TDT 3E-0.4 TT9080

Product Code: 6402272

$35.72$32.47 Ex. GST

Product Code: 6402272 SKU 6402272 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

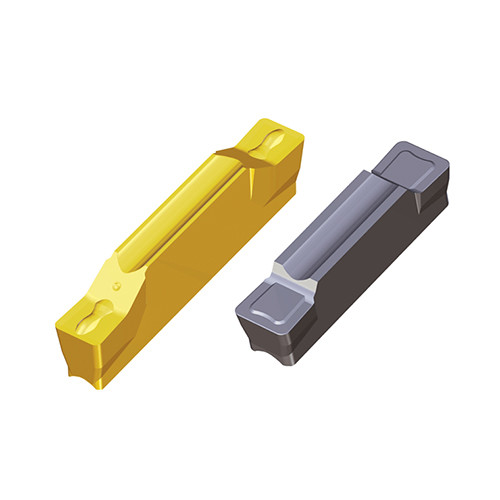

Pressed double-ended inserts for External turning and grooving

Additional information

Weight 0.0043 kg
barcode
Additional Information

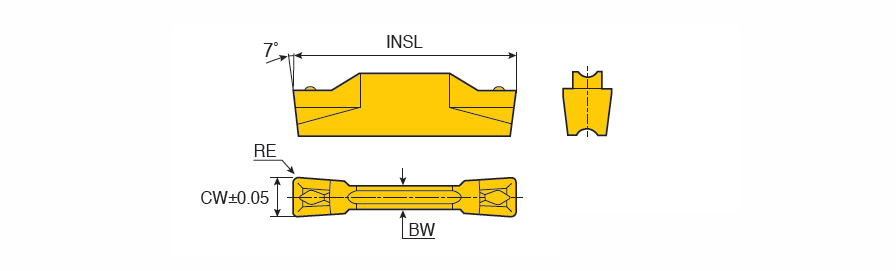

Cutting Width (CW): 3 mm
Application:, Ext. Grooving, Ext. Grooving & Turning, Face Grooving, Face Grooving & Turning, Inserts, Int. Groove & Turn, Int. Grooving, Parting, Corner Radius (RE): 0.4 mm
Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Thread Pitch Maximum (TPX): 4.7 mm
Insert Seat Size Code (SSC): 3
Insert Length (INSL): 20 mm
Measurement Type: Metric
Coating: TiAlN+TiN
Body Material: Carbide
Grade: TT9080
Unit: M
Cutting Edge Material: Carbide

Brand

Taegutec
