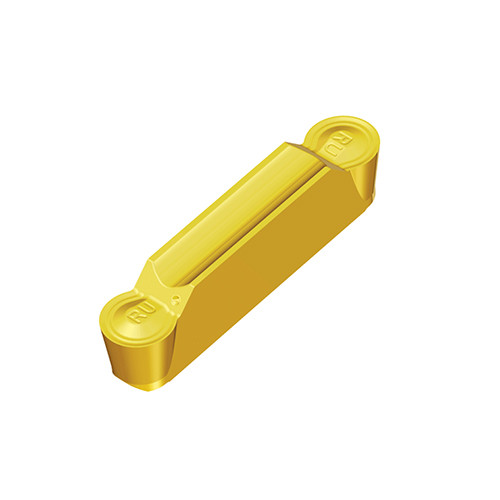

Taegutec TDT 3E-1.5-RU TT7220

Product Code: 6180216

$37.07$33.70 Ex. GST

Product Code: 6180216 SKU 6180216 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

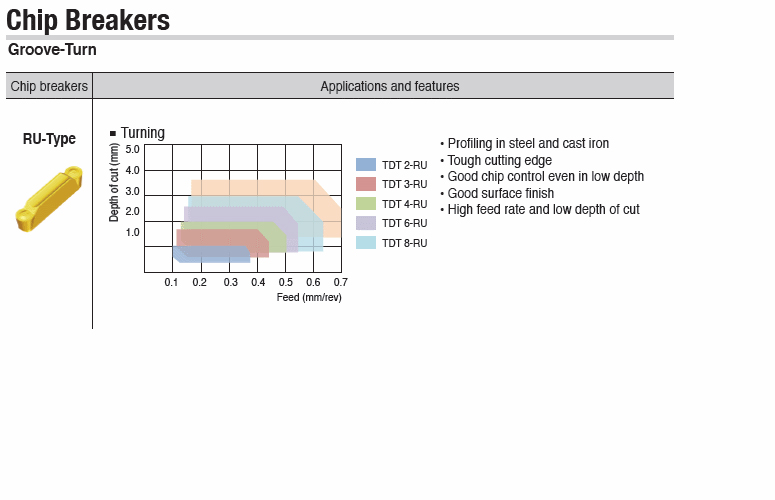

Double-ended pressed inserts for profiling, turning & grooving with stable cutting edge & good chip control when machining steel & cast iron

Weight	0.0040 kg
barcode

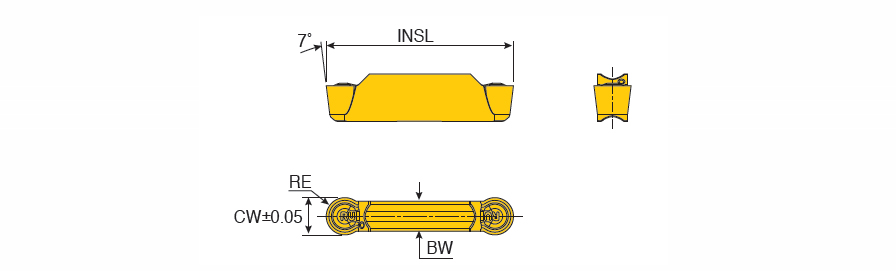

Additional Information	Cutting Width (CW): 3 mm Application:, Ext. Grooving, Ext. Grooving & Turning, Ext. Profiling, Ext. Undercut, Inserts, Int. Profiling, Int. Undercut & Turning, Corner Radius (RE): 1.5 mm Applicable Material:, Steel, Stainless Steel, Thread Pitch Maximum (TPX): 4.7 mm Insert Seat Size Code (SSC): 3 Insert Length (INSL): 20 mm Measurement Type: Metric Coating: TiCN Body Material: Carbide Grade: TT7220 Unit: M Cutting Edge Material: Carbide
